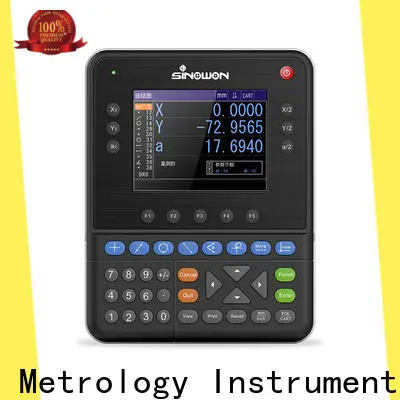

sturdy easson digital readout supplier for soft alloys
Product Feature
◆ 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
◆ Save 100 permanent image elements, can set and save current date;
◆ Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
◆ Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
◆ Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:
◆ Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
◆ With polar and coordinate system, and can display millimeter and inch, and can shift easily;
◆ With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
◆ Support multiple language:Chinese, English and other language;
Technical Specification
| Model | DP400(#510-340) |
| Language | Simple Chinese, Complicated Chinese, Portuguese, German and English, etc. |
| LCD Screen Size | 115mm×85mm |
| LCD Screen Resolution | 640*480 |
| Digital Display Range | 8Digits(With Decimal Point) |
| Display Axis | 3-axis (X,Y,Z/Q) |
| Z/Q Display Model | Length or Angle |
| Angle Display Model | Degree, Minutes and Second or Degree |
| Linear Scale Signal | TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution | 0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate | 4800,9600,14400,19200,38400,57600 |
| Data Output Port | RS232，DB-9 Parent interface |
| Operation Keyboard | Sealed Silicone touch-type keyboard |
| Expansion port | Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply | AC90V-240V,15W |
| Operation Environment | Working Temperature： 0 ℃～40 ℃；Storage Temperature：-10 ℃～60℃；Relative Humidity：<90%RH |
