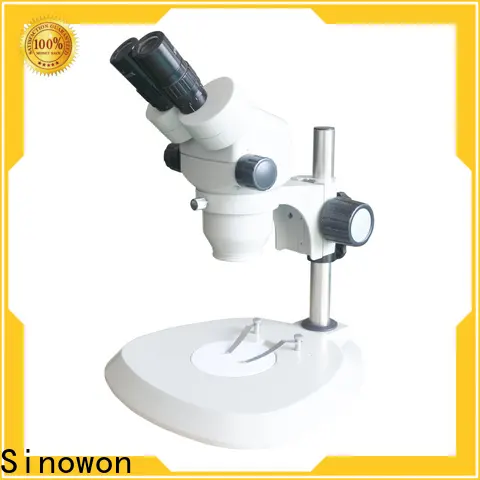

sturdy stereo microscope parts factory for precision industry 1

sturdy stereo microscope parts factory for precision industry 2

sturdy stereo microscope parts factory for precision industry

Model:

ST-524

Code#:

412x242

Accuracy:

≤3+L/200(um)

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

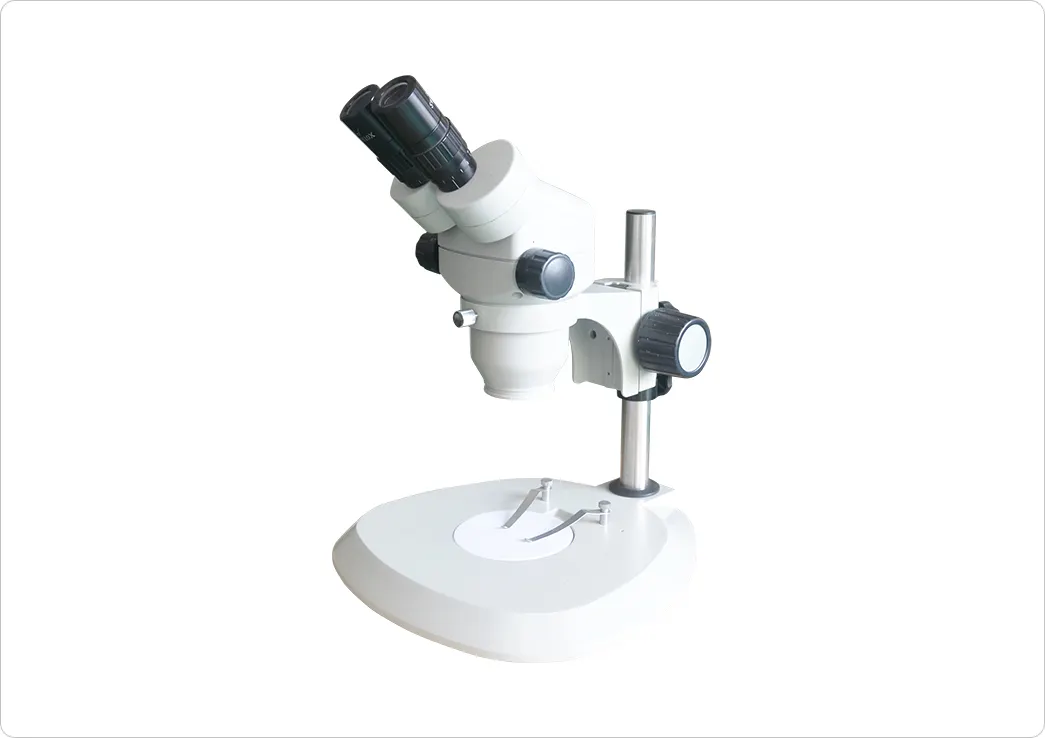

sturdy stereo microscope parts factory for precision industry 3

◆ Unique optic design;

◆ With long working distance and field of depth;

◆ Horizontal zoom knob, easy operation;

◆ Widely used for medical service, agriculture, geology, electronic precision mechanical industry and department.

Specification

Model	ST-524
Code#	412x242
Objective	2x/4x
Eyepiece	With high eye point and wide field eyepiece SWH10X
Zoom Driver	Horizontal axial drive control knobs
Working Distance	105mm
Interpupillary distance adjustment range	52mm~76mm
Diopter Adjustment	±6°(left drawtube)
Focus Range	50mm (the square post is 100mm)
Diameter of the round post	Φ25mm
Distance between from the post center to the main body center	140mm
Measurement to match between the support and the main body	Φ76mm
Diameter of the centerworking stage	Φ95mm
Illumination	The down illuminator is the transmitted illumination of the fluorescent lamp(5W),the up illuminator is the reflected illumination of the halogen lamp(6V、10W).
Accessories	Kinds of stands and holders

Optical Specification:

Objective	Eyepiece						Working Distance
	WF10X/20mm		WF15X/15mm		WF20X/10mm
	Total Magnification	Field of view	Total Magnification	Field of view	Total Magnification	Field of view
1x	10x	20mm	15x	15mm	20x	10mm	100mm
2x	20x	10mm	30x	7.5mm	40x	5mm	100mm
3x	30x	7.5mm	45x	5mm	60x	3.3mm	100mm
4x	40x	5mm	60x	3.3mm	80x	2.5mm	100mm

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
