VicPad Vickers Hardness Vision Measurement

Company Advantages
1. The design of Sinowon vickers hardness test experiment involves many aspects. It mainly includes process mechanics, structural dynamics, process dynamics, stability, and CAD/CAM integration.
2. With our performance objective, the performance of this product is ensured by a series of tests.
3. The product offers significant economic benefits and is now increasingly popular in the market.

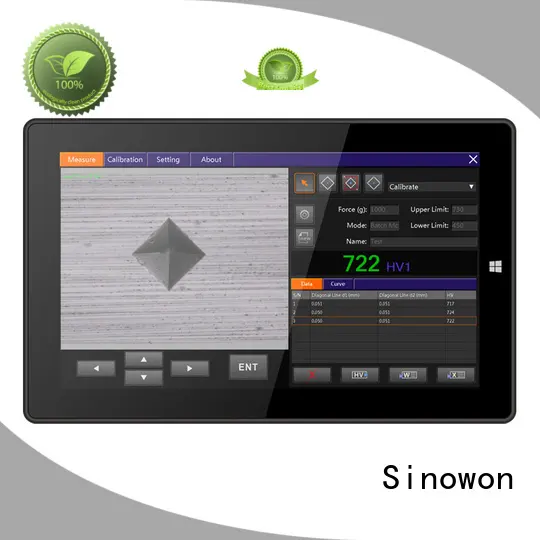

VicPad was developed by Windows operation system, it integrated high resolution CMOS camera and iVicky 3.0 vickers software, VicPad can be worked with any vickers hardness testers, replace the traditional eyepiece, directly measure the indentation, mainly used to upgrade existed or new vickers hardness testers.

There is no need to aim indentation and reading dialog line, and can avoid human error when measure dialog line, largely improve accuracy and efficiency.

Users can export Word/Excel report, and feedback the result to their suppliers and customers, improve quality control capacity.

Name	Vickers Hardness Vision Measurement
Model	VicPad
Operation System	Win10
Size of Tablet	10.1”
USB Connector	Micro-USB2.0, Type C
CPU	Intel Cherry Trail X5-z8300
RAM	4GB
Hard Disc	32GB
Camera	1.3MP Pixel, 1/3”CMOS Color Camera
Vickers Software	iVicky 3.0 Tablet Vickers Software
Application	Any Vickers Hardness Testers

Company Features
1. Sinowon is unique in being able to quickly respond to vickers hardness test experiment , while providing quality assurance.
2. Video measurement system covers a series of Vickers Hardness Tester with high-grade quality & stable technology.
3. We have adopted the policies for sustainable resource utilization. We enhance the environmental management system constantly by determining, realizing and revising environmental goals periodically in order to meet the requirements of our environmental awareness. We regularly give to local non-profits and causes and support many local businesses, so that we may give back both financially as well as with our skills and our time to our society. Check it! We have an effective way to properly manage waste. We have utilized the waste management hierarchy to reduce wastes generated and reuse materials as possible.
