vp profile measurement ph3015 for thin materials Sinowon
- Sinowon has always been providing advanced technology and sound after-sales service for customers.
1. Sinowon profile measurement is manufactured by adopting Reverse Osmosis (RO) technology which offers a cost-effective way to remove ionic and organic impurities without the need for regeneration chemicals.
2. This product is measured in tens of thousands of hours, which is exponentially longer than other lights. It can last a long time even after exceeding the rated number of hours.
3. The product features adjustable hardness from very soft to very hard. By increasing the curing agent to enhance the cross-chain density and hardness of this product, such as the use of sulfur, etc.
4. The product has no threats to the safety of food. People love it because they know the food barbequed by it has little health issues.
5. The product has a fast response time, which can be lighted up very quickly and can achieve full brightness under a microsecond.
Product Feature
◆ The lifting system adopts linear guide rail and precision screw drive, which makes the lift drive more comfortable and stable;
◆ With precision toothless rod and fast movement locking device, ensure return error is within 2um;
◆ High accuracy A optical scale and precision working stage, ensure machine accuracy is within 3+L/200 um;
◆ HD zoom lens and HD color digital camera, ensure clear image without distortion;
◆ With programmable surface 4-ring 8-division LED cold light and contour LED parallel illumination, it can control the brightness of the 4-ring 8-division independently;
◆ With powerful iMeasuring2.1 software system , to enhance the control quality;
◆ Optional imported contact probes and 3D measuring software, it can help upgrade the machine to be coordinate measuring machine;
◆ Optional FexQMS measurement data analysis and real-time monitor software, enhance process control, reduce material consumption;
Specification

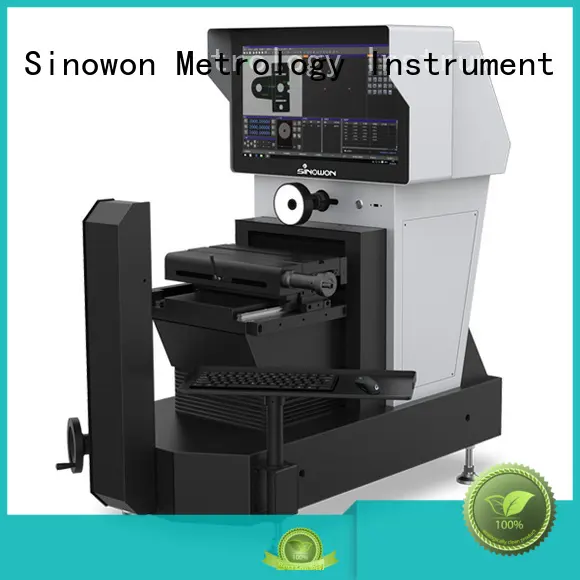

| Product Name | Horizontal Video Projector |
| Model | PH-3015 |
| Code# | #542-310 |
| Working Stage Travel | 355X125mm |
| X/Y-axis Travel | 200X120mm |
| Z axis | 110mm |
| Measurement Accuracy* | ≤3+L/200um |
| Resolution | 0.0005mm |
| CCD | HD700 TVL Color CCD |
| Zoom Lens** | HD 6.5X Detented Zoom Lens |
| Optical Magnification:0.7X-4.5X; Video Magnification:23X~158X(21.5”monitor) | |
| Illuminating System (Software Control) | Surface: Adjustable 4-ring 8-division 0~255-grade LED Cold Illumination |
| Contour: LED Parallel illumination | |
| LED Laser navigation illumination | |
| Working Environment | Temp：20℃±2℃，Temp Variation＜2℃/hr， Humidity：30％－80％RH，Vibration＜0.002g，< 15HZ |
| Measurement Software | iMeasuring 2.1 |
| System | Support XP, WIN7, WIN8，WIN10 32/64 Bit |
| Power | AC110V/60Hz; 220V/50Hz,600W |
| Dimension | 1120 x 720 x1100mm |
| Weight | 165kg |
Company Features
1. Sinowon is a professional company which is specialized in designing and developing optical profile projector for years.
2. Sinowon Innovation Metrology Manufacture Limited. use the potential of our high-quality employees to continuously improve our visual measurement .
3. Sinowon has made the aim clear that becomes the most competitive enterprise in optical measurement machine industry. Ask online! Doing the best to provide optical profile projector with highest quality is the aim of Sinowon. Ask online! Sinowon Innovation Metrology Manufacture Limited. attaches importance to the monitoring and assessment in order to fully exalt the brand popularity, social reputation and loyalty. Ask online!
