wheel polishing equipment design for LCD Sinowon
-
v s
1. Sinowon grinding and polishing equipment is made with the progressive technology and quality assured materials.
2. This product is amazingly strong and not prone to chip or crack. By mixing with other materials to get composite ceramics whose performance has optimized, the fracture strength of this product is improved.
3. The product is fireproof. The material used for the cover is double PVC coated fabric, which meets the fire retardant standards like B1/M2.
4. Since the establishment, Sinowon Innovation Metrology Manufacture Limited. has relied on the development vision of grinding and polishing equipment.

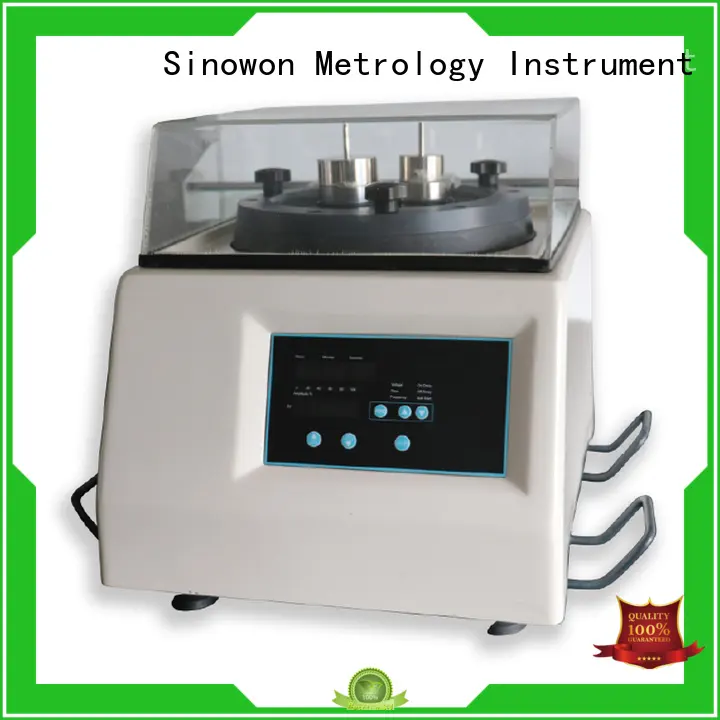

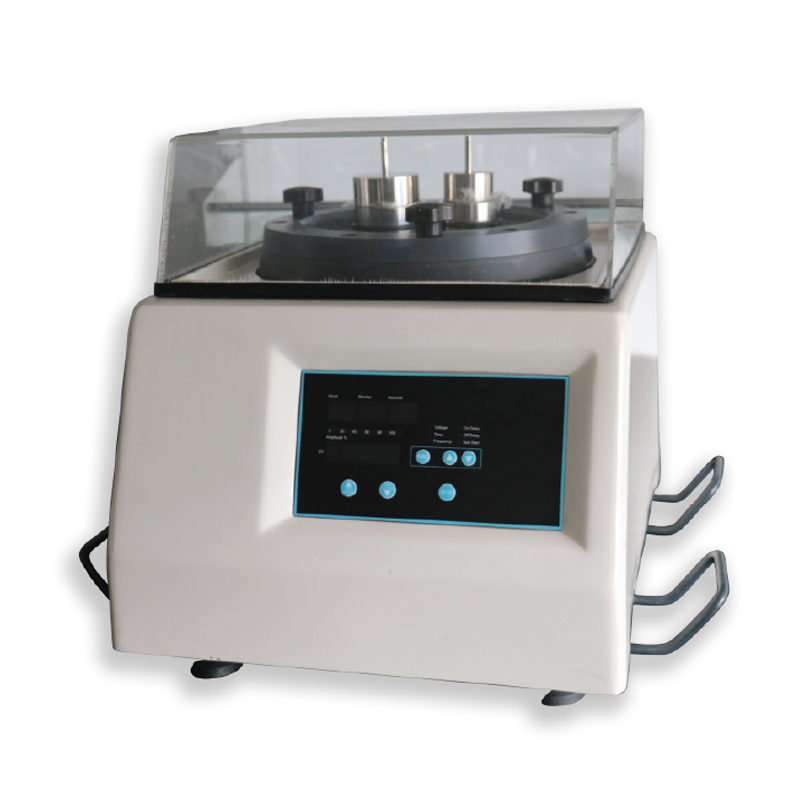

The GP-12 is an automatic vibratory polisher designed to prepare high quality polished surfaces on a wide variety of materials, especially for electron-backscatter diffraction (EBSD) applications. The high frequency vibration in horizontal motion produces a very effective polishing action to remove minor deformation remaining after mechanical preparation and reveal the stress-free surface. Ideal for EBSD specimens preparation.
Product Feature
◆ Frequency and voltage controls. By adjusting the vibrating frequency, different size specimens can be polished. By changing the applied voltage,the speed of the polishing action can be easily controlled;
◆ Timer control. Stop automatically;
◆ Capable of handling small or large specimens;
◆ Multiple size holders (1-inch upto 2-inch diameter, others can be customized);
◆ Robust and durable design;
◆ Easy to use and service;
◆ Ideal for all materials.
Specification
Description | GP-12 |
Bowl Size (mm) | Ø305mm/12inch |
Power | 110/220V，50/60Hz |
Motor | |
Dimension(WxDxH) | 530*660*470 |
Weight(kg) | 135 |
Specimen Holder, 1.25inch | ● 3pcs |
Holder Weights, 1.25inch | ● 3pcs |
Lever Plate for 1.25inch | ● 1pcs |
Polishing Pad | ● 1pcs |
Other holders, weights and lever plate | ○ 1inch ○ 1.5inch ○ 2inch，can be customized |
●Standard○Option
Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been listed as high-tech enterprise for polishing equipment.
2. To achieve technology innovation, Sinowon Innovation Metrology Manufacture Limited. has introduced professional technicians and advanced equipment.
3. Sinowon will put a lot of investment into producing metallurgical equipment . Get an offer! Sinowon Innovation Metrology Manufacture Limited. has been holding the attitude that putting customers first during the business is important. Get an offer!
Market position:
- We JS manufacture medium-to-high grade polished concrete equipment with reasonable price.
- JS polished concrete equipment occupy the market because they bring highest efficiency and save labor cost at the extreme,thanks to the premium raw materials the have.
Applications:
- When doing polished concrete job, for floor polishing as long as the floor is flat and without scratch, using together with polishing liquid, to get a very shining finish;
- With a size (17") polishing pad;
- Attached with vacuum motor, it can work without dust and unnecessary to connect another vacuum cleaner.
- For daily floor cleaning, polishing and maintenance as well, to have a highest efficiency.
Features:
- 2 in 1 polished concrete equipment, polishing and dust absorption
- A polished concrete equipment with 17” polishing pad.
- A polished concrete equipment with Siemens motor
- With a vacuum motor makes non dust when working and save labor cost a lot.
- Aluminium alloy gearbox , which is thicker than others in the market
- Famous brand HRB bearing
- Auto balance
- Driven by both gear and belt
- Wheel ajustable to different height
Standard configurations:
- Machine body of polished concrete equipment - 1ea
- 10m electric wire - 1ea
- tool kit - 1ea
- polishing pad - 1 ea
Specifications:
| Model | Working width | Discs | Pads | Speed | Power | Voltage | Net weight |
| JS-430A | 430mm | 1 | 17"x1 | variable 0-1800rpm | 5.5HP | 380V 3phase | 170kgs |
| JS-430B | 430mm | 1 | 17"x1 | variable 0-1800rpm | 5.5HP | 220V 3phase | 170kgs |
| JS-430C | 430mm | 1 | 17"x1 | variable 0-1800rpm | 5.5HP | 220V 1phase | 170kgs |
Others:
- Minimum order quantity:1set
- Lead time: around 7 days upon MOQ
- Minmum order quantity: 1 set
- Quantity discount: available
- OEM/ODM: available
- Quantity discount: avaialble
- Loading port and origin: Shanghai, China
Pictures:
- The color of JS-430 polished concrete equipment can be customized.
Multifunction grinding and polishing machine
Model OK-900C, Model OK-600C and high speed polishing machine
Multifunction grinding and polishing machine can be used to grind, polish and waxing. Here is how it works: electric
motor drives the plate which is installed to spin with high speeds like1500-3000 r/min; grinding heads with grinding
agent will clean and polish the oxide layer, scars, or other pollution on the floor or finish coats.
Feedback from customer:
Specifications of 12 heads grinder and polisher:
Working width: 580*580 mm
Voltage: 380V / 220V
Motor: Siemens motor / China brand motor
Power: 7.5 KW (10 HP )
Inverter : 7.5 kw
Grinding heads: 12 heads
Water: 35 L
Weight: 270 kg
Model OK-900C and Model OK-600C adopted strong magnetic plate, magnetic grinding heads can be installed
directly without any tools. Polishing transfer heads supplied with the machines, when you need to do polish
work, just assembled the polishing heads after installed transfer heads.
Transfer heads and polishing heads will be along with the machine, if you need other grinding heads or polishing
heads, please send us inquiry email or chat with on line service sales.
New design type high speed polishing machine also adopted Siemens motor to ensure high working efficiency.
Package:
