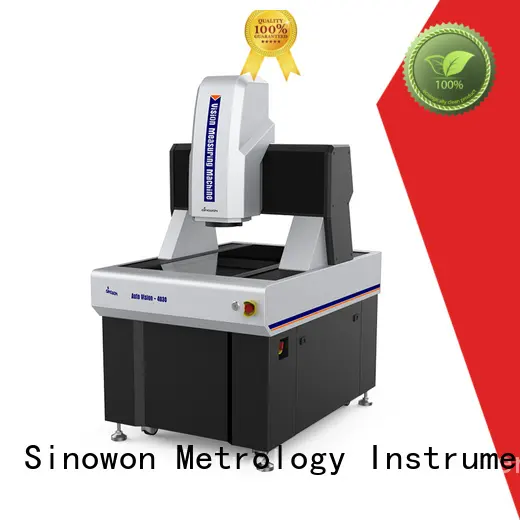

2.5D AutoVision Automatic Video Measuring System
1. Sinowon video measuring system is endowed with exceptional appearance. Its beautiful design comes from our exclusive designers with strong innovation and design capabilities. More than 10,000 pcs have been delivered and installed
2. This garment has an attractive visual appeal and has received high consumer’s acceptance due to its utility and durability. Innovation is always made to update the product
3. This product is of fine workmanship. The edge banding is fine and smooth with excellent hand feeling, and the line of symmetry is straight. The product is verified by ISO9001:2015 to be quality ensured
2.5D AutoVision is a Gantry Fully Auto Vision Measuring Machine, it is designed for high accuracy and large dimension measurement. Equipped with movable bridge structure, the workpiece is fixed, which can ensure measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.
Product Characteristics
◆ Moving bride structure, the workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ “00” grade “JINANQING”marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
◆ Imported H grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
◆ Optional touch probe and laser probe, it can also be customized according to customer request;
◆ Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
Technical Specification
| Product Name | 2.5D Automatic Vision Measuring Machine | ||||||||||
| Model | AutoVision432 | AutoVision542 | AutoVision652 | AutoVision862 | |||||||
| Code# | 520-121 | 520-131 | 520-141 | 520-151 | |||||||
| X/Y-axis Travel（mm） | 400x300mm | 500x400mm | 600x500mm | 800x600mm | |||||||
| Z-axis Travel（mm） | 200mm | ||||||||||
| X/Y/Z 3-axis Linear Scale（mm） | Imported Open Linear Scale, resolution：0.1um | ||||||||||
| Guidance Mode | Imported H grade Linear Guide，Double-Track Double Slider Guide | ||||||||||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | ||||||||||
| Measurement Accuracy | XY-axis：≤2+L/200(um) | ||||||||||
| Z-axis：≤5+L/200(um) | |||||||||||
| Repeatability | ±2um | ||||||||||
| Video System | 1/2" Color CCD Camera | ||||||||||
| 6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | |||||||||||
| Field of View(mm) Diagonal * Horizontal*Vertical） | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | ||||
| 1/2"CCD | 11.43x9.14x6.86 | 8.00x6.40x4.80 | 4.00x3.20x2.40 | 2.67x2.13x1.60 | 2.00x1.60x1.20 | 1.78x1.42x1.07 | |||||
| Illumination | Contour | LED Parallel Contour Illumination | |||||||||
| Surface | 5-ring 8-division 0~255 grade continue adjustable | ||||||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | ||||||||||
| Load Capacity | 30Kg | 30Kg | 30Kg | 30Kg | |||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | ||||||||||
| Power | 220V/50Hz/10A | ||||||||||
| Dimension | 1160x800x1650mm | 1450x950x1650mm | 1600x1050x1650mm | 2000x1200x1650mm | |||||||
| Packing Dimension | 1380x1170x1910mm | 1690x1300x2000mm | 1800x1400x2000mm | 2300x1700x2000mm | |||||||
| Weight | 650Kg | 780Kg | 1380Kg | 2000Kg | |||||||
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has reached a peer leader level. We are quite qualified and credible in developing and producing visual measuring machine. Sinowon Innovation Metrology Manufacture Limited. has won large market of video measuring system by virtue of solid technology foundation.
2. Sinowon Innovation Metrology Manufacture Limited. has stepped up efforts to accelerate technological development.
3. Sinowon Innovation Metrology Manufacture Limited.'s R&D capability has highlighted through measurement video . Sinowon Innovation Metrology Manufacture Limited. proposes the idea of video coordinate measuring machine first and machine vision system oriented. Inquire!
