durable micro vickers manufacturer for measuring

Company Advantages
1. Sinowon vickers hardness measurement is carefully crafted. It has gone through cutting, sewing, fiber washing, dyeing, combing, finishing, and other production processes. The product performs well in program control and material use reduction
2. This product can be an asset to those with sensitivities and allergies who are in need of green and hypoallergenic furniture. Its quality and accuracy are improved every year
3. The product offers a combination of cushioning and responsiveness. The cushioning spreads the load out across the foot to reduce the impact of landing, while the responsiveness facilitates bounce back effortlessly and quickly. It is supported by multiple languages say English, Turkish, and German
4. The product features excellent resistance to extreme temperature fluctuations. When it is subject to the extreme temperatures, it will not lose its flexibility and cracking. More than 10,000 pcs have been delivered and installed
5. This product is non-toxic. It has been tested in terms of materials and dyes to guarantee no harmful element is included. The product is excellent in dust prevention

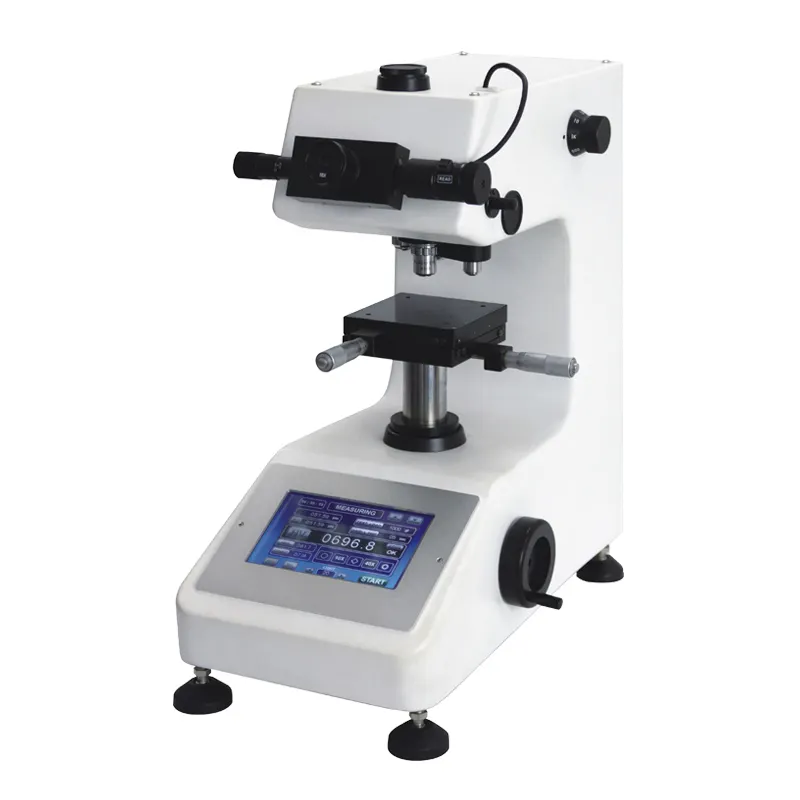

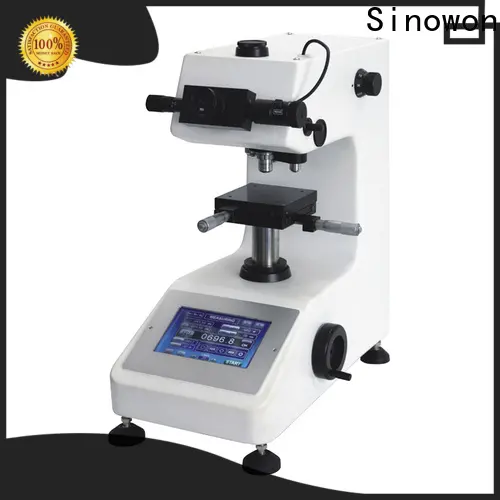

◆ Micro-Vickers hardness tester with colour touch screen;

◆ 8 inches colour touch screen , high resolution , easy to operate;

◆ Strong and stable body;

◆ LED illumination , light , adjustable , long life and no heat;

◆ Data storage for review and printing;

◆ Rotatable turret with five working positions;

◆ 250 lines encode with more precise measurement;

◆ D1 and D2 exchange automatically (Vicky MHV-2000Plus);

◆ Conversion between different scales;

◆ Two indenters available (Vickers and Knoop);

◆ Can be developed to semi-automatically or full-automatically system.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Model		Vicky MHV-1000 Plus	Vicky MHV-2000 Plus
Code#		823-160Plus	823-260Plus
Test   Load	gf	10 / 25 / 50 / 100   / 200 / 300 / 500 / 1000 / 2000 (option)
	mN	98.07/ 245.2/   490.3/ 980.7/ 1961/ 2942/ 4903/ 9807/19614 (option)
Loading Mechanism		Automatic loading   and releasing method 50 ~100 µm/s
Dwell Time		5 ~ 99 s
Turret Mechanism		Automatic
Objective		40x/10x    ( Option:20x,80x )
Magnification of   Microscope		For measurement   :400x ( Objective 40X and Eyepiece 10X )
		For observation :   100x ( Objective 10X and Eyepiece 10X )
Measuring   Microscope		Electronic ( Auto   D1/D2 )
Max. Measuring   length		230 µm  ( In case of 400x )
Mix. Measuring unit		0.1µm   (0.01µm for TS type)
Max.Specimen   Height		90mm
Max.Specimen Depth		110mm
Measuring Hardness   Scale		HV,  HK
X-Y Stage		Manual  type
Dimensions		110 × 110 mm
Max. movement		25 × 25 mm
Min. micro   graduation		1/100 mm
Light Source		LED Illuminator
Print Output		Measured data and   statistic data  :( Max. Value / Min.   value / Mean value / Range / Standard deviation )
Accuracy		Conform to :  JIS B -7735, ASTM E-384 and ISO 146
Photographic Device		Capable to mount   photographic device  ( Option)
Dimensions		W 240 × D 470 × H   520 mm
Weight		48Kg
Power Supply		Single phase AC 220   V  50/60 Hz

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is the pillar in micro vickers industry, having been engaged in vickers hardness measurement for many years.
2. Our factory is fully equipped. We continue to invest heavily in the latest equipment, such as high-speed equipment, to ensure satisfactory quality, capacity, time to market and cost.
3. 'Persistence, Efficiency ' is Sinowon Innovation Metrology Manufacture Limited.'s motto. Welcome to visit our factory!
