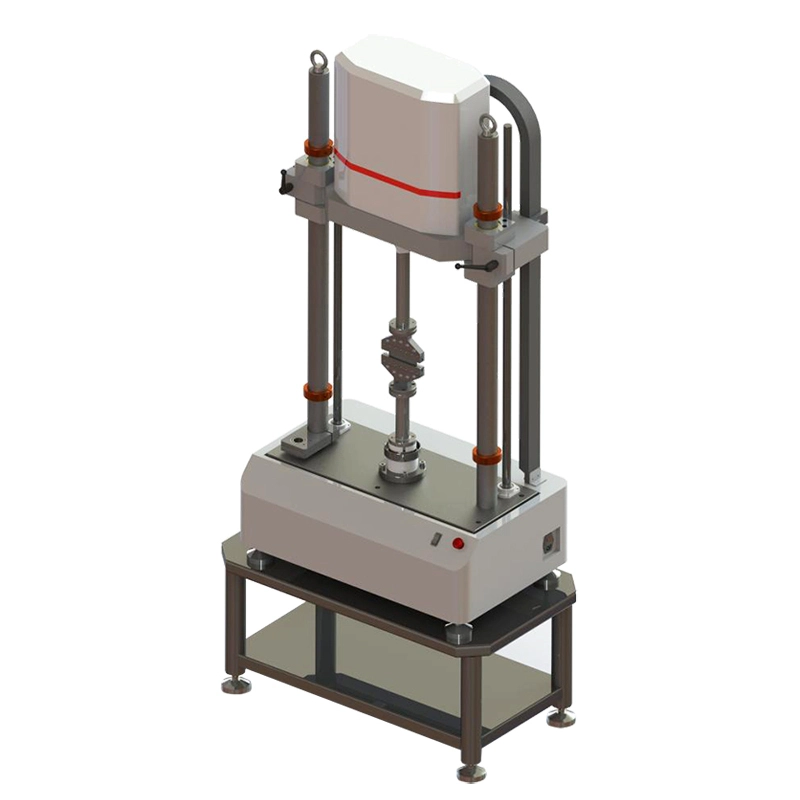

Dynamic (static) Fatigue Testing Machine ST-1180
ST-1180 dynamic (static) fatigue testing machine is composed of a drive system, a transmission system, a computer control display system, etc. It is suitable for tensile and compress fatigue performance testing of various rubber products. With suitable auxiliary equipment, it can complete fatigue testing of products of different specifications.The machine is pollution-free, efficient, has a wide frequency range and testing space, high integration, simple structure, low failure rate, stable and reliable performance, and simple operation.It is widely used in rubber manufacturers, parts, mining enterprises, scientific research institutions and other industries.
Software Specifications
uUsing the windows work platform, all parameter settings are selected by clicking, making the operation simple;
uThe software interface has easy switching between simplified Chinese, traditional Chinese, and English;
uQuick and self-service standardized testing form mode;
uWith the function of customizing test methods;
uIt has the function of automatic calculation and analysis of experimental data, and can customize the calculation formula according to needs;
u2D strain analysis of image surface;
uThe motion control software is equipped with stress, strain, and strain energy density testing methods;
uIntegrated force and travel sensors ensure precise machine control;
uUsers can filter the complete test raw data;
uTest automatic operation and analysis;
uAutomatic online video system for measuring the length of cracks;
uAutomatic crack detection and measurement;
uProvide sine wave, square wave, and triangular wave analysis graphs;
uDifferent frequency testing conditions available.
Specification
Model | ST-1180 |
Capacity Selection | 500N |
Measurement and control system | A special fatigue testing and control system based on windows system |
Force-measuring accuracy | Better than ±1% |
Force Resolution | 1/300,000 |
Test Frequency | 1, 2, 5, 10Hz can be set freely |
Amplitude of vibration | 1~10mm can be set freely |
Journey Adjustment | 100mm maximum |
Test Item | Static tension, dynamic fatigue |
Vibration Waveform | Sine wave, square wave, triangular wave, saw tooth wave, cosine wave |
Displacement Measurement | Have |
Maximum Travel | 800mm |
Left and right space | 500mm |
Clamp Configuration | One pair of compression and tension clamps |
Number of fatigue tests | Arbitrarily set |
Test Sample | ---------- |
Machine weight | About 320kg |
Machine size | 1000mm wide, 540mm deep, 2300mm high |
Power Supply | 220V, 50Hz (or 110V, 60Hz) |
Load measurement accuracy
±0.5% of the indicated value meets or exceeds the following international standards:
ASTM E-4, BS 1610, DIN 51221, ISO 7500/1, EN10002-2, JIS B7721, JIS B7733, etc.
Speed accuracy
±0.1% of set speed
Environmental requirements
Operating environment: +10~30℃ Storage environment: -40~70℃ Humidity: 10%~90%RH.
