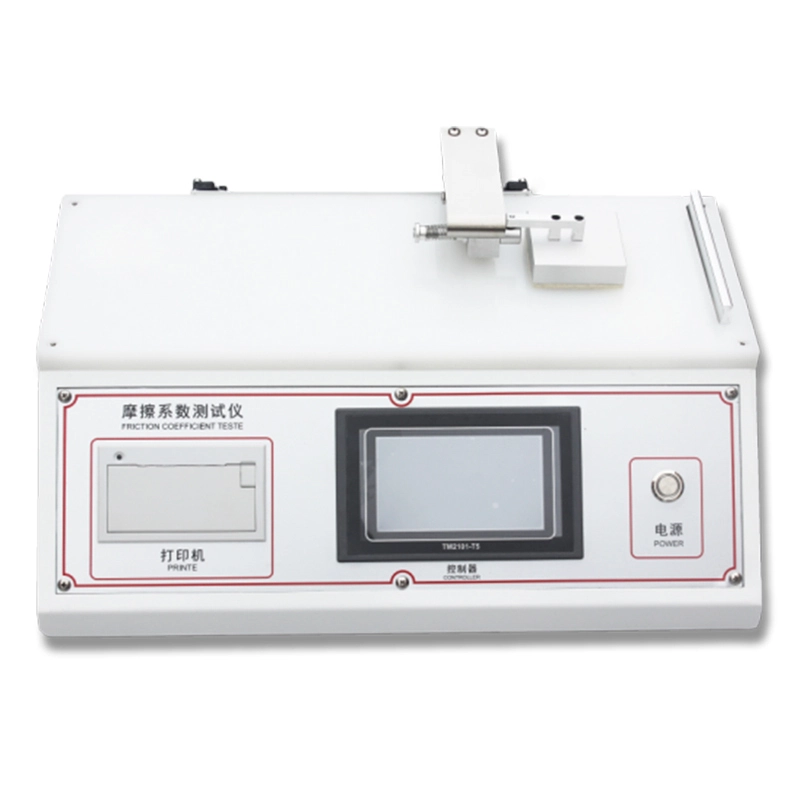

PT-6097L Electronic friction coefficient tester
The friction coefficient tester is developed for the determination ofstatic friction coefficient and dynamic friction coefficient of plastic filmand sheet when sliding on the surface of itself or other materials, and canmeet the GB / T1006-1988, plastic —— film and sheet ——friction systemThe determination of numbers is the ideal test equipment for all levels of qualityinspection departments and production enterprises, which can provide you with accurate test results.
Working conditions of the test machine
◆ In the range of 15~35℃, the relative humidity is not greaterthan20%-80%;
◆ Correct installation on a solid foundation or workbench;
◆ In an environment without vibration;
◆ In the surrounding clean environment without corrosive medium and withoutelectromagnetic field interference;
◆ The fluctuation range of the power supply voltage is AC220V±10%, 50Hz.
Operational Principle
The surfaces of the two samples are placed flat together, and under a certaincontactpressure, the two surfaces are moved relative to record the required force.
Specification
Model | |
Sensor capacity | 10kg |
Test force accuracy | ±0.02N |
Ram travel | 10+60mm（ GB/T1006、ISO8295)；150mm（ASTM D1984) |
Slider weight | 200±2g |
Size of theupper sample | 63*63mm |
Subsample size | 80*200mm |
Slider movement speed | 100±10mm/min |
Sample thickness | ≤20mm |
Outline dimension | 400x300x180mm（WxDxH) |
Weight | About 10kg |
Source | AC220V, 50Hz |
