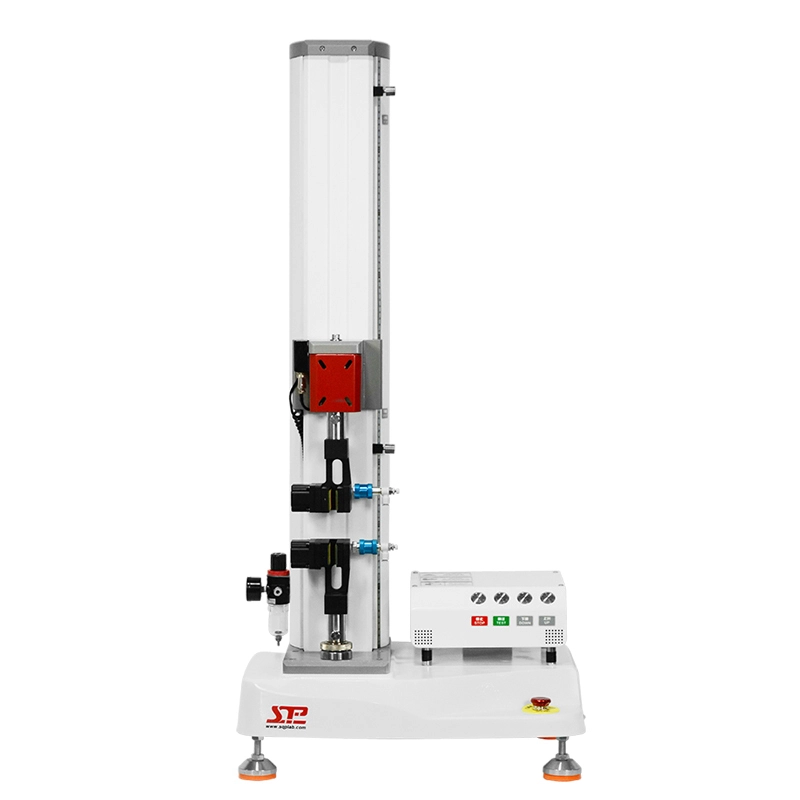

ST-1176G Computer Servo Pull Pressure Test Machine
The ST-1176G computer servo tension and pressure testing machine is specially developed and manufactured by our company for the needs of high-precision testing. The instrument is equipped with a new transmission structure, running smoothly and without noise. It adopts customized high-precision sensors, ensuring force measurement accuracy, and is particularly suitable for the technical research and development of various adhesive materials. The instrument can be equipped with different fixtures for 180 degrees ˚ Peel test, 90 ˚ Peel test, T-shaped peel test, and floating roller peel test (applicable to high-strength adhesives) can also be used to test the tensile shear strength, splitting strength, and other tests of adhesive products, which can meet different testing standards.
Product Characteristic
uHigh-performance
The machine structure adopts no pless ball screw and high stiffness guide column, which improves the load efficiency and structural rigidity. Using the full digital AC servo system, to ensure the high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.2%;
uHigh-accuracy
Customized high-precision sensors with an effective measurement range of 0.5% to 100% F.S, with a comprehensive accuracy better than level 0.5;
uStandardization
Grip connection standardization, can quickly replace a variety of test applicable fixtures;
uHigh wisdom
Professional software intelligent control interface, automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output; mouse click one-click control, one-click output test report, without tedious education and training; One click automatic calibration ensures the accuracy and consistency of test data.
uGorgeous
Precision casting, combined with finely crafted spare parts processing technology, presents the exquisite and atmospheric European design style of the entire machine.
Software Specifications
uAdopting self-developed specialized testing software for tensile and compressive testing machines;
uUsing windows working platform, parameter set all point selection, simple operation;
uSingle screen operation, no need for screen switching
uThe software interface has simplified Chinese, traditional Chinese and English three languages, easy to switch;
uThe test form mode can be regulated by itself;
uTest data can be called directly in the main screen;
uWith a variety of measurement units, the metric British system can be switched;
uData comparison of multiple curves can be performed simultaneously;
uWith the automatic return function;
uWith the automatic correction function;
uWith the custom-defined test method function;
uWith the test data operation and analysis function;
uWith the function of automatic magnification, in order to achieve the most appropriate size of the figure;
uCan do tensile, compression, bending, stripping, pull, pressure, fatigue and other tests.
Specification
Model | ST-1176G |
Code# | |
Capacity selection | 500g,1,2,5,10,20,50,100,200,500kg of either option |
TT&C software | Windows Professional test software under the platform |
Accuracy of measuring force | Better than ± 0.5% |
Detective resolution | 1/500，000 |
Effective force measurement range | 0.5~100%F.S |
Deformation value accuracy | Better than ± 0.5% |
Test speed range | 0.5~1000mm / min, can be set |
Test maximum trip | Maximum 650mm, excluding fixture |
Effective test space | Diameter 120mm, left and right |
Unit switch | Multiple units of measurement, including international units |
Shutdown method | Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing |
Specific function | Pull, pressure and fatigue test can be done (optional function) |
Standard Item List | 1 set of stretching fixtures, 1 232 data cable, 1 instrument power cable, 1 CD instruction manual, 1 certificate of conformity, and 1 warranty card |
Optional Item list | 1 business computer, and various test fixtures |
Dimension | About 55x45x115cm (WDH) |
Weight | About 65kg |
Motor power | AC servo motor |
Power Supply | 1PH, AC220V, 50Hz, 10A or specified |
Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.
