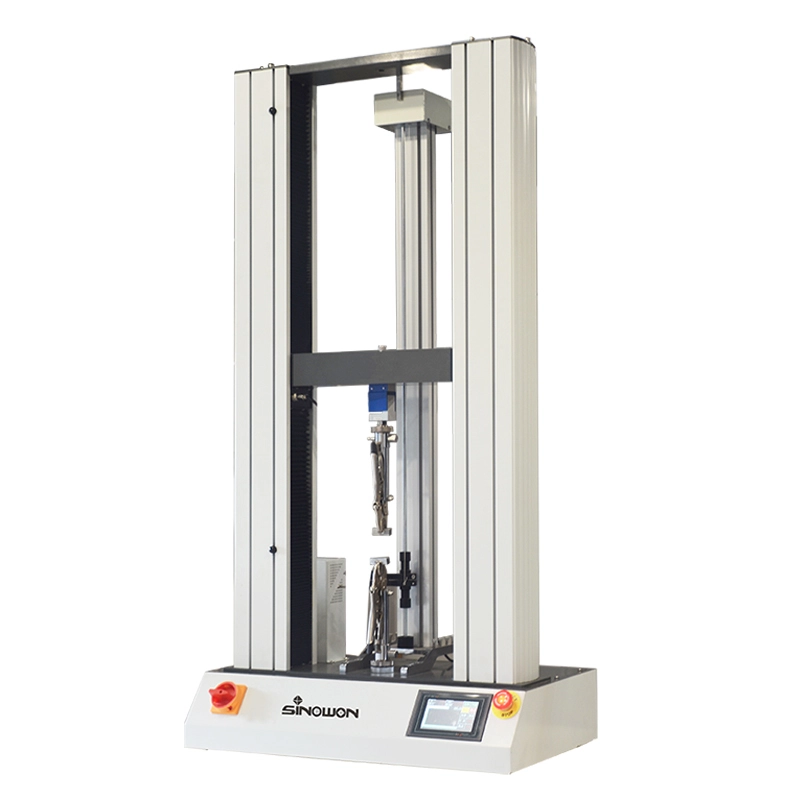

ST-1166 Computer-Type Servo-Pull-Pressure Test Machine 1
ST-1166 Computer-Type Servo-Pull-Pressure Test Machine 1

ST-1166 Computer-Type Servo-Pull-Pressure Test Machine

    oops...!

    no product data.

    Go to homepage

    ST-1166 Computer-Type Servo-Pull-Pressure Test Machine 2

    ST-1166 computer-type servo pull-pressure testing machine is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper and color printing packaging, adhesive tape, bags and handbags, textile fiber, food, pharmaceutical and other industries. Can test the physical properties of various materials and finished products, semi-finished products, choose a variety of different fixtures can be done tensile, compression, pull, pressure, bending, tearing, stripping, adhesion, shear and other tests. GB, ISO, ASTM, BS, DIN, JIS and other national or international standards can be tested, for the ideal testing and research equipment for various factory enterprises, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.


    Features Summary


    SL-8162 is a small tensile and pressure testing machine developed by our company, mainly suitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire electronics, etc. It can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling, etc.

    uHigh-performance

    The structure of the machine adopts non-gap double ball screw and double guide column guide, which improves the load efficiency and structural rigidity. Using the full digital AC servo system, to ensure the high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.2%;

    uHigh-accuracy

    Imported high-precision sensor, with an effective measurement range of 0.5%~100%F. S, the combined accuracy was better than 0.085%

    uStandardization

    Grip connection standardization, can quickly replace a variety of test applicable fixtures;

    uHigh wisdom

    Professional software intelligent control interface, automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output; mouse click one-click control, one-click output test report, without tedious education and training;

    uGorgeous

    The aluminum extrusion sealing plate, combined with the elaborate spare parts processing technology, presents the exquisite atmospheric European design style of the whole machine, reflecting the unique aesthetic proposition of Baoding industrial design.

    Software Specifications


    uUsing windows working platform, parameter set all point selection, simple operation;

    uSingle screen operation, no need for screen switching

    uThe software interface has simplified Chinese, traditional Chinese and English more than 30 languages, easy to switch;

    uThe test form mode can be regulated by itself;

    uTest data can be called directly in the main screen;

    uWith a variety of measurement units, the metric British system can be switched;

    uData comparison of multiple curves can be performed simultaneously;

    uWith the automatic return function;

    uWith the automatic correction function;

    uWith the custom-defined test method function;

    uWith the test data operation and analysis function;

    uWith the function of automatic magnification, in order to achieve the most appropriate size of the figure;

    uCan do tensile, compression, bending, stripping, pull, pressure, fatigue and other tests;

    uEquipped with a high-precision two-point extender, it is very suitable for the large deformation measurement of elastic materials such as rubber.


    Specification


    Model

    ST-1166

    Capacity Selection

    2,5,10,20,50,100,200,500,1000,2000kg of either option

    TT&C Software

    Windows Professional test software under the platform

    Accuracy of measuring force

    Better than ± 0.5%

    Detective Resolution

    1/500000

    Effective force measurement range

    0.5~100%F.S

    Accuracy of deformation value

    Better than ± 0.5%

    Test speed range

    0.05~1000mm / min, can be set

    Test maximum trip

    Maximum 1000mm, without fixture

    Effective test space

    Before and back, left and right 400mm

    Unit Switch

    Multiple units of measurement, including international units

    Downtime Method

    Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing

    Specific Function

    Pull, pressure and fatigue test can be done

    Standard Layout

    1 payment of standard fixture, 1 set of software and data cable, 1 equipment power cable, 1 copy of operation manual, 1 product certificate, 1 product warranty card

    Choose and buy configuration

    1 business computer, 1 printer, PT-211 two-point extension fixture, various test fixtures

    Machine Size

    Approx. 76x46x160cm (WDH)

    Machine Weight

    About 160kg

    Motive Power

    AC servo motor

    Source

    1 PH, AC220V, 50Hz, 10A, or specified

    Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.




    Software
