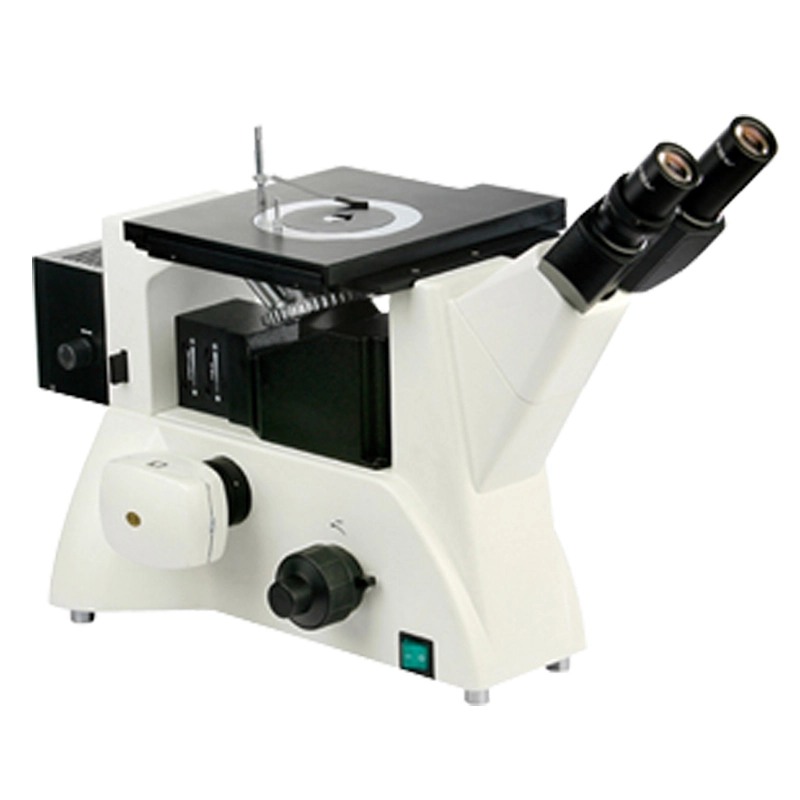

Inverted Metallurgic Microscope IMS-320

Model:

IMS-320

Code#:

431-153

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Inverted Metallurgic Microscope IMS-320 2

Product Feature

◆ IMS-320 inverted gold phase microscopy adopts excellent infinite optical system and modular functional design concept, which can easily upgrade the system and realize the functions of polarlight observation, dark field observation and so on. The compact and stable high rigid main body fully embodies the vibration prevention requirements of the microscope operation. The ideal design that meets the ergonomic requirements makes the operation more convenient and comfortable and has a wider space. It is suitable for microobservation of metalstructure and surface morphology and is an ideal instrument for metalology, mineralalogy and precision engineering research.

Specification

Product Name	Inverted Metallurgical Microscope IMS-320	Code#
Model	IMS-320	431-153
Eyepice	High-point , extra wide field eyepiece WF10X/Ø20mm	431-533
Objectives	Inifitive Plan achromatic objective 5X/0.12 BD Working distance:9.70mm Inifitive Plan achromatic objective 10X/0.25 BD Working distance:9.30mm Inifitive Plan achromatic objective 20X/0.40BD Working distance:7.23mm Inifitive Plan achromatic objective 50X0.70 BD Working distance:2.50mm	431613 431623 431633 432653
Viewing Head	Inclined 30°, interpupillary distance 53-75mm	431-503
Nosepiece	Quintuple Nosepiece	431-603
Focusing	Coarse micro coaxial focus with locking device, microlattice value: 2 μm	431-703
Mechanical Stage	Size of circular rotating carrier plate: maximum outer diameter Ф130mm, Minimum pass-light aperture is less than Ф12mm. Overall dimension: 242mmX200mm; movement range: 30mmX30mm	431-404
Illuminator	12V/50W Halogen Lamp,Adjustable	431-833
Color Filter	Yellow,Blue,Green Color Filter and Ground Glass	432-303
Power Supply	AC220V/50Hz;110V/60Hz	431-813

Optional Accessories

Product Name	Code#	Product Name	Code#
Cross cross microscope DE10X/22mm	432*513	CCD 0.5X camera connector	431-723
Infinite Plan Achromatic 40X/0.60 BD Working diatance:3.00mm	431*643	Infinite Plan Achromatic 60X/0.70 BD Working diatance:1.90mm	431*663
Infinite Plan Achromatic 80X/0.80 BD Working diatance:0.80mm	431*673	Infinite Plan Achromatic 100X/0.85 BD Working diatance:0.22mm	431*683
1xC-mount(Available for Digital Camera)	431-713	0.5X with split scale, lattice value of 0.1mm/ lattice	431*723
