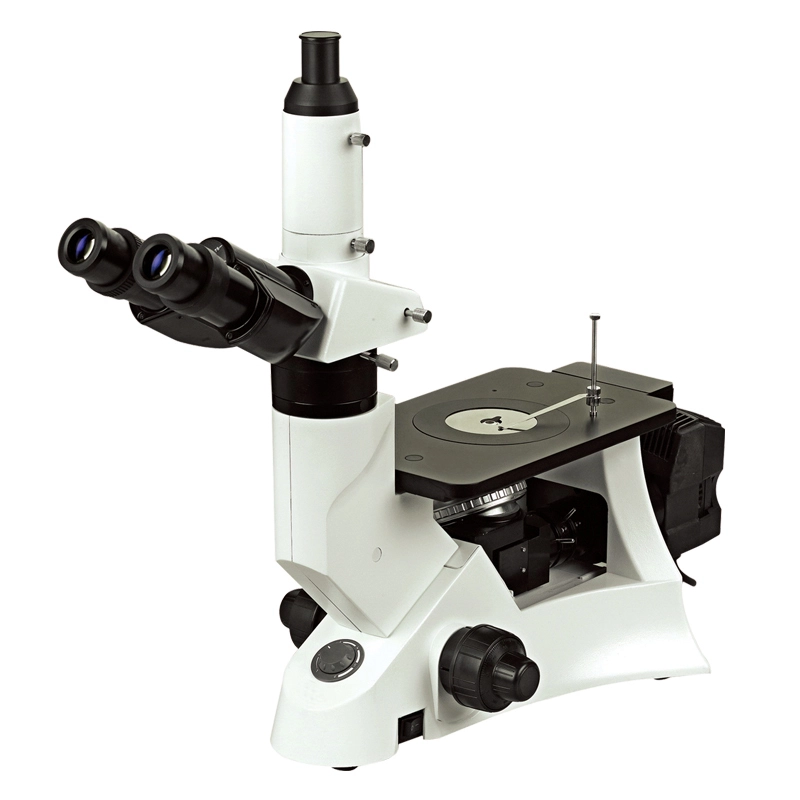

    Inverted Metallurgical Microscope IMS-310 2


    Product Feature


     IMS-310 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.


    Specification




    Product NameInverted Metallurgical Microscope IMS-310Code#
    ModelIMS-310
    431-144
    EyepiceHigh-point , extra wide field eyepiece EW10×/ 20431@514
    Objectives

    Inifitive Plan achromatic objective 4X/0.1

    Inifitive Plan achromatic objective10X/0.25

    Inifitive Plan achromatic objective20X/0.4(s)

    Inifitive Plan achromatic objective 40X/0.6

    431-614

    431-634

    431@644

    432-654

    Viewing HeadInclined 30°, interpupillary distance 48-75mm431-504
    Nosepiece

    Quintuple Nosepiece

    431-604
    Focusing

    Coaxial coarse & fine adjustment, Vertical objective movement,

    Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation

    431-704
    Mechanical Stage

    Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm

    Moving range 120X78mm,loading plate 128X86mm

    431-404
    Illuminator

    6V/30W Halogen Lamp,Adjustable

    431-804
    Color FilterYellow,Blue,Green Color Filter and Ground Glass432-304
    Power SupplyAC220V/50Hz;110V/60Hz431-814


    Optional Accessories



    Product NameCode#Product NameCode#
    Infinite Plan Achromatic 5x/0.25431-664Infinite Plan Achromatic 80x/0.9431-684
    Infinite Plan Achromatic 100x/0.80431-694

    Mechanical 226x178mm

    431-414

    1xC-mount(Available for Digital Camera)

    431-714USB Camera USB-A1431-513
