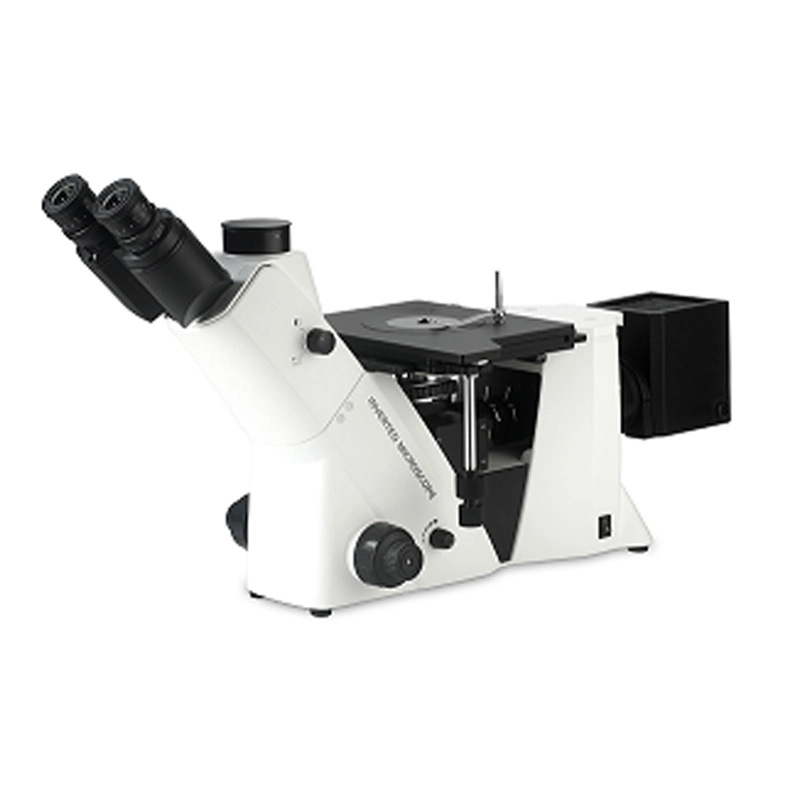

Inverted Metallurgical Microscope IMS-370/IMS370D

    oops...!

    no product data.

    Go to homepage

    Inverted Metallurgical Microscope  IMS-370/IMS370D 2

    Product Feature

    New research and new development

    Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.

    Dark field objective,Make observation in dark & bright field.

    Oversize view field eyepiece, view field up to 22mm for comfortable observation.

    Oversized three-layer working stage, more choice for samples.



    Specification




    ItemSpecificationIMS-370IMS-370D
    Eyepiece

    WF10×/22mm(adjustable

    WF10×/22mm(adjustable,reticule 0.1m)

    Metallurgical LWD Infinity Plan Objectives

    LPL   5×/0.13                 W.D=16.04

    LPL   10X/0.25                 W.D=18.48

    LPL    20X/0.40                W.D=8.35

    LPL    50X/0.70                W.D=1.95

    LPL     80X/0.80               W.D=0.85

    LPL     100X/0.90(Dry)    W.D=1.10

    Metallurgical LWD Infinity

    Plan Objectives for  Bright & Dark Field

    M PLAN   5X/0.13           W.D=16.04

    M PLAN  10X/0.25          W.D=18.48

    M PLAN  20X/0.40          W.D=8.35

    M PLAN  50X/0.70           W.D=1.95


    Seidentopf Trinocular Head

    Inclined 30°, interpupilary distance: 48-76mm

    Light distribution (both):100: 0(100% for eyepiece)

    80:20(80% for trinocular head, and 20% for eyepiece)

    Nosepiece

    Quintuple

    Quadplex (specially for bright /dark field objectives)


    Mechanical StageStage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm
    Coaxial Coarse and Fine Focusing unitCoarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm.
    Polarizing UnitPolarizer /Analyzer
    llumination

    12V/50W Halogen(Input voltage:100V~240V

    5WLED lamp (Input voltage:100V~240V)

    Auto power on-off systemPower off automatically upon user leaving 10 minutes, power on automatically upon user approaching
    Filter

    Blue

    Green/ Amber/ Grey

    C-mount1×/0.75×/0.5×C-Mount  (focus adjustable)
    Adaptor for Digital Photograph Use for CANON/NIKON/OLYMPUS etc.

    Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

    Packing Size: 660mm×590mm×325mm     Gross Weight: 17 kgs     Net Weight: 12.5 kgs


    Technical Parameters of objective lens



    ProducthecObtive
    N.A.

    Working distance(mm)W

    IMS-370IMS-370D
    Metallurgical LWD Infinity Plan Objectives

    LPL  5X

    LPL  10X

    LPL   20X

    LPL   50X

    LPL   80X

    LPL  100X(Dry)

    0.13

    0.25

    0.40

    0.70

    0.80

    0.90

    16.04

    18.48

    8.35

    1.95

    0.85

    1.10


    Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field

    M PLAN   5X BD

    M PLAN   10X BD

    M PLAN    20X BD

    M PLAN    50X BD

    0.13

    0.25

    0.40

    0.70

    16.04

    18.48

    8.35

    1.95


    Objective specification: ( "●" Is Standard outfits, "○" Is Optional Accessories.)
