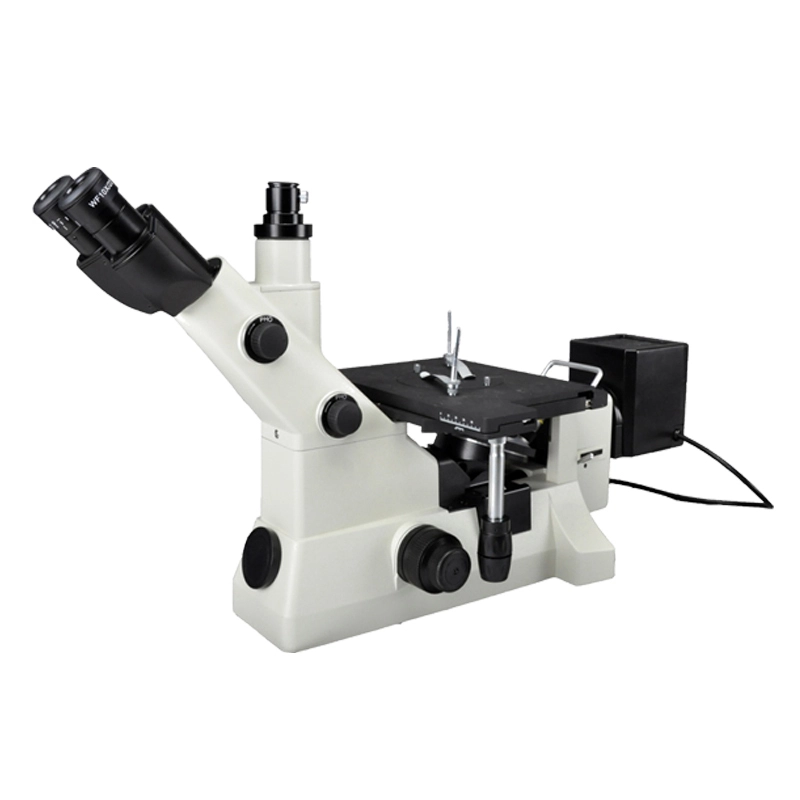

Inverted Metallurgical Microscope IMS-330

    oops...!

    no product data.

    Go to homepage

    Inverted Metallurgical Microscope  IMS-330 2

    Specification



    Product nameInverted Metallurgical Microscope IMS-330
    Model431-165

    Optical System

    Infinite optical system

    Extra Wide Field Eyepiece

    WF10X/22

    WF10X/20 Eyepiece with Scale of Cross hair

    WF15X/16

    WF20X/12

    Infinite LWD Plan  Achromatic Objective

    5X/0.12/∞/0(BF/DF)      LWD 10mm

    10X/0.25/∞/0(BF/DF)    LWD 10mm

    20X/0.4/∞/0(BF/DF)      LWD 5mm

    100X/0.9/∞/0(BF/DF)    LWD 0.7mm

    Viewing HeadSiedentopf binocular viewing head, Inclined at 30°, Interpupillary 48mm-75mm
    Kohler Incident Light

    12V/50W Halogen light, Center and brightness adjustable

    Polarizer and analyzer

    DIC

    Built-in Green, Blue, Yellow, Gray and ground glass

    FocusingCoaxial coarse and fine adjustment, fine division 2μm,
    NosepieceBackward quintuple nosepiece
    Stage

    Double layer mechanical stage 226X178mm, Moving range 40mmX40mm

    Stage Φ20, Φ30, Teardrop

    Accessories

    Photo/Video attachment

    Micrometer scale 0.01mm
