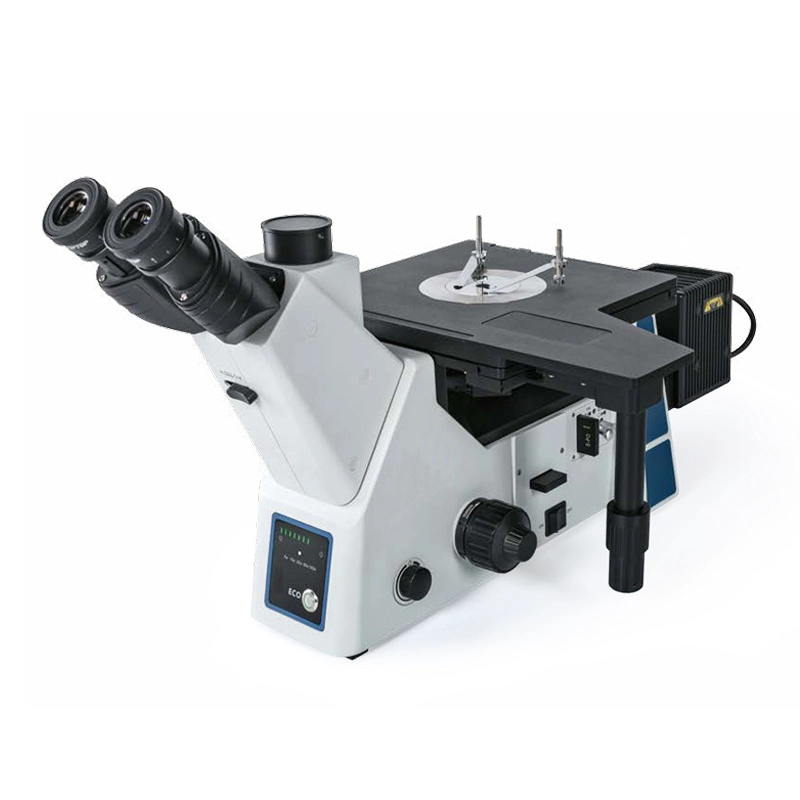

Inverted Metallurgical Microscope IMS-340 1
Inverted Metallurgical Microscope IMS-340 1

Inverted Metallurgical Microscope IMS-340

    oops...!

    no product data.

    Go to homepage


    Inverted Metallurgical Microscope IMS-340 2

    Product Feature


    Comfortable and simple operation

    Low position operating knobs 360 degree rotatable viewing head, according with ergonomical design, reduce the fatigue from long-time use.

    Stable frame with outstanding design

    Metal casting frame with corrosion and wear resistance technology, ensures a solid and durable microscope.Built-in magnet for hexagonal wrench keeping, small designs are the most practical.

    Front magnification display

    With built-in sensor in nosepiece, the objective magnification on using is visible from the front plate.

    Intelligent ECO system

    With environmental and economic ECO infrared sensing system, the microscope is preset to be shutdown when there is no operator within limited time.


    Specification




    Product NameInverted Metallurgical Microscope
    ModelIMS-340
    Code#431-155
    Optical systemInfinity color correct optical system
    Eyepice

    High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable

    High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable

    Objectives

    Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X

    Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X

    Viewing Head45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular:trinocular=100:0 or 0:100
    Nosepiece

    Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor

    Inward quintuple bright & dark field nosepiece (DIC slot), withbuilt-in magnification sensor

    Frame

    Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture.

    Diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display.

    Mechanical StageThree layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob
    IlluminatorExternal power adapter, input 100V-240V, output 15V13.4A, lightintensity adjustable
    Camera adapter0.35X, 0.5X, 0.65X, 1X focusing C-mount
    OthersPolarizer, fixed analyzer, 360 degree rotatable analyzer, DIC attachment, filters, high precision micrometer
