micro vickers directly sale for measuring Sinowon

Company Advantages
1. micro vickers is checked against customers' chosen specifications to meet a range of requirements including passing international standards of the destination market. The product is well known for high accuracy and great stability
2. Sinowon Innovation Metrology Manufacture Limited. has established micro vickers business organizations in many regions, basically forming a strategic layout. It, up to the requirements from different industries, is widely applied
3. The quality of this product is excellent, exceeding the industry standard. Its packing is made seriously to guarantee the safety during shipment
4. We regard quality as our top priority and ensure reliable product quality. The Gost certificate has been obtained for the Russian market

◆ MicVision main use in testing materials allows for the measurement of the hardness of small or thin specimens and small areas of larger specimens, MicVision testing is commonly used to determine characteristics of thin sheets, foils, fine wire, epoxies, paints, etc. and is often employed in R&D applications .

◆ MicrVision hardness is especially useful in determining hardness variations, caused by hardening, quenching, plating, fabrication, welding or annealing, bonding, etc. Micro hardness testing can be accurately employed using loads as slight as 10 gram, somewhat less and considerably more in certain situation.

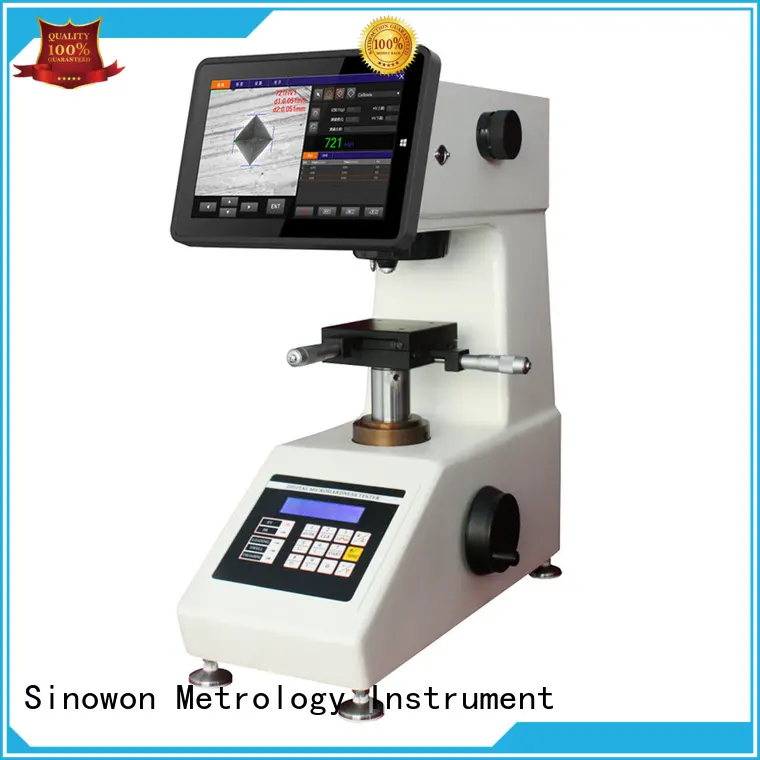

MicVision is intelligentized Vickers system, adopted vision measuring technical and auto measuring indenter system, and auto output reports. There is no need to aim indentation and reading dialog line, and can avoid human error when measure dialog line, largely improve accuracy and efficiency.

Product Name		Vision Micro Hardness Teater
Model		VH-1
Code#		823-110V
Test Force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	gf	10、25、50、100、200、300、500、1000
Optical System		Observe and Measure Objectives：10X/40X
Turret System		Auto Rotating Turret
Measuring Range		1HV-2967HV
X-Y Work Table		Size:100 X 100mm；Travel:25X25mm；Resolution Ratio:2um
Loading Control		Automatic (Loading, Dwell, Unloading)
Dwell Time		5-60s adjustable
Illumination		LED / Halogen adjustable
Measuring System		iVicky 3.0 Auto Measuring Vickers System
PC System	Operation System	Win10
	Screen size	10.6”
	CPU	Intel I3
	USB	Double USB (could insert USB and soft dog)
	RAM	2GB
	Hard Disc	32GB
	Camera	1.3MP Pixel, 1/2”CMOS Color Camera
Max Height of Specimen		70mm
Instrument Throat		95m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		425x245x490mm
Packing Dimension		500x490x700mm
Gross / Net Weight		47Kg/36Kg
Execution Standard		ISO6507，ASTM E92，JIS Z2244，GB/T434

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. boasts a proud history of innovation and focuses on delivering exceptional micro vickers hardness testing machine . We have been one of the most competitive suppliers.
2. Sinowon Innovation Metrology Manufacture Limited. has strong technical force, advanced management mode and a sound quality assurance system.
3. We work hard to protect the future for our natural resources. So we aim to effectively improve our use of raw materials, energy, and water in the manufacture of our products.
