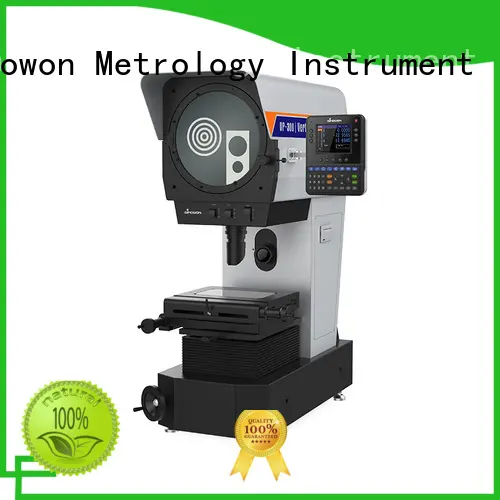

Optical Vertical Profile Projector Ø300mm LED Illumination VP300
1. Sinowon optical measurement is of guaranteed quality. It is tested to ensure that the basic features are in place. These include things like flammability ratings, wicking standards, abrasion resistance, and more. The product is designed by professional designers to be user-friendly
2. We have been leading the new fashion of optical measurement industry, and have brought optical measurement systems to every user. The production is supported by professional engineers
3. The product has good strength. During the production, it is finely welded and die-casted to ensure its physical strength. A quality control system is implemented for the product
4. It is UV resistant to some extent. The selected fabric together with the coating makes it resist ultraviolet light and sunlight. Innovation is always made to update the product
5. This product features ease of use. Its parameters and such as voltage and power is reasonably considered and are suitable for the voltage range in different applications. The product is analyzed and tested cautiously before packing
Product Feature
◆ The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;
◆ Coating process reflector, clearer image and great dustproof;
◆ Adjustable contour and surface illumination, to meet with difference workpiece demand;
◆ Imported high light and long using life LED illumination ,to ensure precision measurement demand;
◆ High resolution optical system with clear image and magnification error is less than 0.08%;
◆ Powerful Bi-axial fan cooling system，highly increase using life;
◆ Powerful and colorful DRO DP400，realized fast and accurate 2D Measurement;
◆ Built-in Mini-printer, can print and save data;
◆ With standard 10X objective, optional 5X,20X，50X，100X objective，rotary table, foot switch ,clamp, etc.
Specification
| Product Name | Ø300mm Digital Vertical Profile Projector | ||
| Reverse Image | VP300-1510 (#511-330) | VP300-2010 (#511-340) | |
| Obverse Image | VP300-1510Z(#511-330Z) | VP300-2010Z(#511-340Z) | |
| Metal Stage Size | 258x308mm | 258x358mm | |
| Glass Stage Size | 148x206mm | 148x256mm | |
| Stage Travel | 150x100mm | 200x100mm | |
| Product Dimension(L×W×H) | 988x563x1224mm | 988x563x1224mm | |
| Packing Dimension(L×W×H) | 1200x800x1580mm | 1200x800x1580mm | |
| Focusing | 100mm | ||
| Accuracy | ≤3+L/200(um) | ||
| Resolution | 0.0005mm | ||
| Load Capacity | 10Kg | ||
| Screen | Dia:φ312mm,Measurement Range ≤ Ø300 | ||
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6’ | |||
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout | ||
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED | ||
Working Environment | Temp 20℃±5℃，Humidity 40％－70％RH | ||
| Power Supply | AC110V/60Hz; 220V/50Hz,150W | ||
| Cold-air Blowing System | 3-axis Powerful Fan | ||
| Gross/Net Weight | 220/170kg | 220/170kg | |
Objective lens:
| Magnification | 10X(Std.) | 20X(Opt.) | 50X(Opt.) | 100X(Opt.) |
| Field of View | φ30mm | φ15mm | φ6mm | φ3mm |
| Working Distance | 75mm | 69mm | 44mm | 26mm |
