Sinowon autovision measurement video series for industry

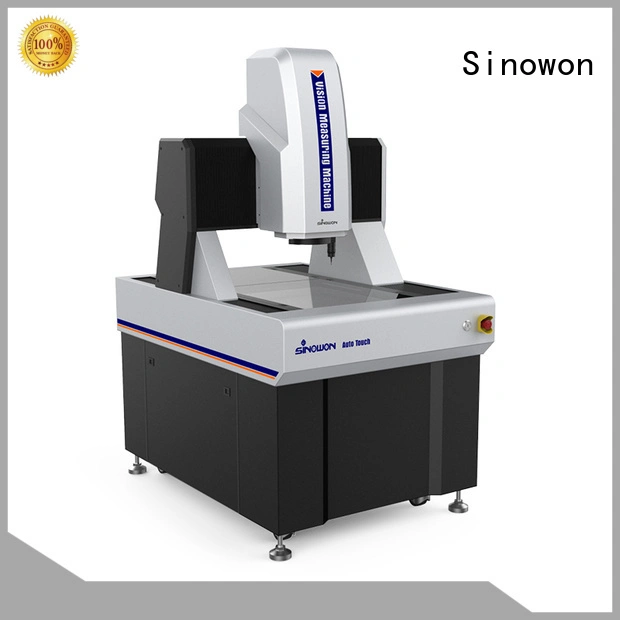

3D AutoTouch is equipped with Touch Probe to realize 3D Measurement. Four-axis is motorized control and measurement, it is very easy to operate and can meet with widely application for precision industry measurement.
Product Characteristics
◆ Moving bridge structure, measured workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ “00” grade “JINANQING”marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
◆ Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ Equipped with imported touch probe, realize 3D measurement;
◆ With proprietary fully auto measuring software iMeasuring 4.2, powerful function, simple operation;
◆ Optional laser probe, it can also be customized according to customer request;
◆ Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
Technical Specification
Product Name | 3D Autotouch Automatic Vision and Touch-probe Compound Measuring Machine | |||||||||
Model | AutoTouch 432 | AutoTouch 542 | AutoTouch 652 | AutoTouch 862 | ||||||
Code# | 521-121 | 521-131 | 521-141 | 521-151 | ||||||
X/Y-axis Travel（mm） | 400x300mm | 500x400mm | 600x500mm | 800x600mm | ||||||
Z-axis Travel（mm） | 200mm | |||||||||
X/Y/Z 3-axis Linear Scale（mm） | Imported Open Linear Scale, resolution：0.1um | |||||||||
Guidance Mode | Imported P grade linear guide，double-track double slider guide | |||||||||
Operation Mode | Joystick controller, Mouse operation, automatic detection program | |||||||||
Measurement Accuracy | XY-axis：≤1.8+L/200(um) | |||||||||
Z-axis：≤5+L/200(um) | ||||||||||
Repeatability | ±2um | |||||||||
Video System | High definition 1/2" Color CCD Camera, Image navigation system | |||||||||
6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | ||||||||||
Field of View(mm) (Diagonal *Horizontal*Vertical) | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | |||
1/2"CCD | 11.43x9.14x6.86 | 8.00x6.40x4.80 | 4.00x3.20x2.40 | 2.67x2.13x1.60 | 2.00x1.60x1.20 | 1.78x1.42x1.07 | ||||
Illumination | Contour | LED Parallel Contour Illumination | ||||||||
Surface | 5-ring 8-division 0~255 grade continue adjustable | |||||||||
Software System | diMeasuring 4.2 Fully Auto Measuring Software | |||||||||
Load Capacity | 30Kg | 30Kg | 30Kg | 30Kg | ||||||
Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | |||||||||
Power | 220V/50Hz/10A | |||||||||
Dimension | 1160x800x1650mm | 1450x950x1650mm | 1600x1050x1650mm | 2000x1200x1650mm | ||||||
Packing Dimension | 1380x1170x1910mm | 1690x1300x2000mm | 1800x1400x2000mm | 2300x1700x2000mm | ||||||
Weight(Kg) | 650Kg | 780Kg | 1380Kg | 2000Kg | ||||||
