Sinowon Brand minimum color inspection microscope with camera
- has a management team and a staff team, who are both young, market-oriented and knowledgeable. The team members are equipped with strong team spirit and innovative consciousness. All of us strive to produce quality products with common efforts.
- Based on market demand, can provide a convenient pre-sales consultation and perfect after-sales services for customers.
- will adhere to the enterprise spirit which is to be people-oriented, sincere and trustworthy. We follow the business concept of 'talent is the foundation, sci-tech is the guide, management is the basis, quality is the center'. With a focus on the development tendency of domestic and foreign markets, we strive to achieve product differentiation depending on technological innovation. Our goal is to continuously provide more quality products and services for consumers.
- During the development for years, has been continuously enhancing the technology strength and expanding the production scale. Now we become a leader in the industry.
- not only sells vision measuring machine throughout the country, but also exports them to Southeast Asia, the Middle East, Africa, and other countries and regions.
1. More customers have shown more interest in the unique design of rockwell hardness tester for sale. The production is supported by professional engineers
2. The product is highly praised in many exhibitions such as Shanghai Electronica China Show, Sinowon Is Dedicated To Manufacture, Supply And Export The Best rockwell hardness tester for sale.
3. With the purpose of serving customers, Sinowon Innovation Metrology Manufacture Limited. will develop together with its clients. Imported materials and accessories are used in product manufacturing
4. inspection microscope with camera produced by Sinowon Innovation Metrology Manufacture Limited. has a strong competitive advantage in rockwell hardness tester for sale market. The product is verified by ISO9001:2015 to be quality ensured

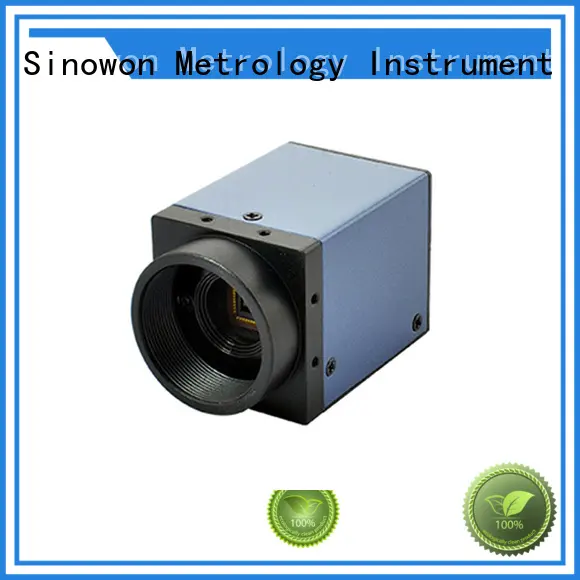

1/3” Analog Color Video Camera
Vicam6.0
Vicam6.0 is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.
Technical Specifications：
Commodity | 1/3” Analog Camera of Vision Measuring Machine |
Model | ViCam6.0 |
Video Signal System | Type E: PAL |
Sensor | Diagonal 6.0mm 1/3” Exview CCD |
Unit cell size | 6.5um(H)X6.25um(V) |
Number of pixels | approx. 470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 650TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms |
Video process | Bio-ele image processing ele ext-Fx TM |
Sensitivity | 0.1Lux |
S/N ratio | 54dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(1800 °K~10500 °K) |
AES | OSD set: 8-level manual/auto: 1/50s~1/10,0000s |
OSD | available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Power consumption | Approx. 1.5W; recommended: +12VDC |
Operating temperature | 0℃ to +40℃ (recommended) |
Dimension | 60.0 (L)×48.5 (W)×58.0 (H) mm |
Weight | approx. 155g |

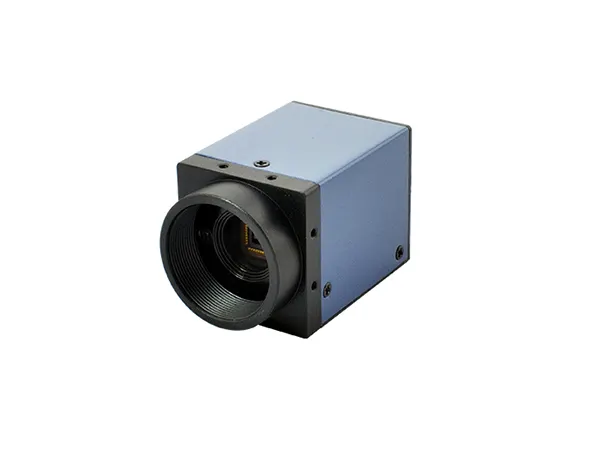

1/2” Analog Color Video Camera
Vicam8.0
Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.
Technical Specification:
Commodity | 1/2” Analogue Color Video Camera |
Model | Vicam8.0 |
Signal system | Type E: PAL standard |
Sensor | 1/2” 8.6um(H)X8.3um(V) |
Number of pixels | Approx.470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 700TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75 ohms: C:0.3Vp-p 75 ohms |
Video process | ele ext-Fx |
Sensitivity | 0.001Lux |
S/N ratio | 63dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(2300° K~11000° K) |
Image adjustment | OSD set, Brightness, contrast ratio, and sharpness, Chroma, gain |
Language | OSD set,8 English/Chinese/France/German/Portuguese/Spanish |
OSD | Available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Lightening proof | isolated 10/700us 4000V; follow IEC61000-4.5, ITU-T K20/21 |
Power consumption | approx. 2.4W +12V DC |
Operating temperature | 0℃ to ~40℃ |
Dimension | 127.1 (L)×68.8 (W)×48.7 (H) mm |
Weight | approx. 400g |
