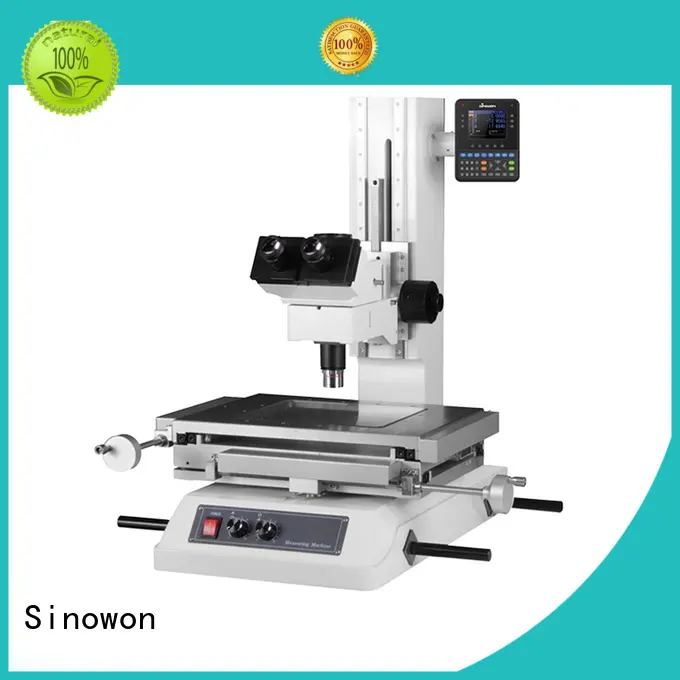

Sinowon excellent measuring microscope inquire now for soft alloys
Model:
STM-3020A
Code#:
532-160
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Product Details
With the pursuit of perfection, Sinowon exerts ourselves for well-organized production and high-quality vision measuring machine.Closely following the market trend, Sinowon uses advanced production equipment and manufacturing technology to produce vision measuring machine. The product receives favors from the majority of customers for the high quality and favorable price.
Product Comparison
Good materials, advanced production technology, and fine manufacturing techniques are used in the production of hardness testing machines. It is of fine workmanship and good quality and is well sold in the domestic market.Compared with similar products, Sinowon's hardness testing machines is more advantageous in the following aspects.
1. The design of Sinowon tool microscope is the combination of functionality and aesthetics.
2. The quality of the product is under the guarantee of international certificates.
3. The product is in high demand in the international market due to its high quality and good usability.
4. The product is noted for its prominent cooling effect in a variety of fields, especially in large industrial installations and food preservation.
Product Feature
◆ Bright field observation, clear and flare less obverse image, wide field of view;
◆ Long working distance objectives, up to optical 1000x magnification;
◆ Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;
◆ The quick-release system, which is especially useful in long-stroke measurements;
◆ Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the column;
◆ Zero-set switches (X- and Y-axis) are also located near the stage feed handles;
Specification
| Microscope Model | STM-2015A | STM-3020A |
| Code # | 532-150 | 532-160 |
| X/Y-axis travel | 200x150mm | 300x200mm |
| Scale Resolution | 0.0005mm | |
| XY Stage Measuring Accuracy at 20ºC. | (2+L/200) μm L: measuring length | |
| Observation Image | Obverse image (Erect Image is available) | |
| Eyepiece Tube | Binocular Eyepiece: WF10/20 | |
| Objective Lens | Only 5x is standard delivery; Optional: 10X, 20X, 50x 100x | |
| Contour Illumination | Adjustable LED | |
| Surface Illumination | Adjustable LED | |
| Z Axis Travel Range | Standard focus travel:150mm, 200mm is optional | |
| Z Axis Focusing | Manual focusing (Coarse/fine) | |
| XY Stage Floating Function | Quick release mechanism | |
| Display Unit Function | Zero setting, Direction switching, Data output via RS-232 | |
| Power Supply | AC220/50HZ; AC110V/60Hz | |
| Optional Accessories | High-Precision Rotary Table RT4(D:165mm), RT5(262mm) | |
| Digital Readout DP300 | ||
| Quickmeasuring Measuring Software QM2.0 | ||
| CCD adapter and CCD camera | ||
Optical Specification:
| Name | Objective | Eyepiece WF10/22 | |||||
| N.A. | W.D.(mm) | f(mm)’ | R(um) | ±▽p(um) | Magnification | Visual Field（mm） | |
| 5x | 0.15 | 11.6 | 40 | 2.1 | 16.3 | 50x | ¢4.4 |
| 10x | 0.3 | 6.3 | 20 | 0.9 | 3.1 | 100x | ¢2.2 |
| 20x | 0.4 | 10.3 | 10 | 0.69 | 1.8 | 200x | ¢1.1 |
| 50x | 0.8 | 2 | 4 | 0.34 | 0.4 | 500x | ¢0.44 |
| 100x | 0.8 | 1.96 | 2 | 0.34 | 0.2 | 100x | ¢0.22 |
