A professional manufacturer of measuring & testing equipment.

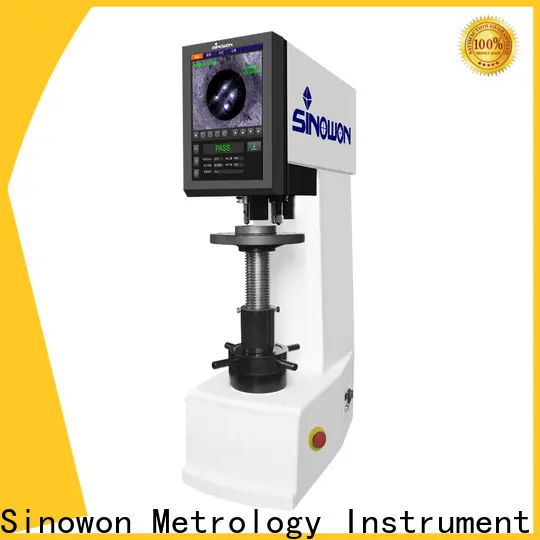

Sinowon hot selling brinell hardness testing machine factory price for steel products 1

Sinowon hot selling brinell hardness testing machine factory price for steel products 2

Sinowon hot selling brinell hardness testing machine factory price for steel products

Model:

AutoBrin-3000Z

Code#:

831-170

Accuracy:

≤± 3.5％

Warranty:

12 month

Delivery Time:

15-30days

Standard:

GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243

Certificate:

Inquiry

Sinowon hot selling brinell hardness testing machine factory price for steel products 3

Product Feature

◆ Equips with OS Win10, and already installed BrinScan V3.0 Auto Brinell Measurement software.

◆ Apply vision measurement technology, one key operation, realize auto loading, dwell, unloading and indentation measurement.

◆ AutoBrin AB-3000Z can display data statistics, hardness conversion, limitation setting, graph, measurement mode setting, etc.

◆ Loading by high accuracy force sensor , and can compensate force loss during loading by micro central processing unit.

◆ Loading control by load cell with accuracy at 0.5‰, microchip can make force compensation automatically lost during loading.

Application

Because of Brinell method apply big loading force and generate big indentation, it is suitable to test hardness of hard alloy, cemented steel, hardened steel, case-hardened steel, hard cast steel, aluminum alloy, copper alloy, malleable casting, soft steel, hardened and tempered steel, annealed steel, ball bearing steels.

Specification

Name	Auto Digital Touch Vision Brinell Hardness Tester
Model	AutoBrin-3000Z
Code#	831-170
Loading Force	Kgf	62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf
	N	612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N
Hardness Resolution	0.1HBW
Brinell Range	(8-650) HBW
Indentation Measurement	Automatically
Objective	1x And 2x
Software	Win 10 OS, MS Office
Brinell Measurement Software	BrinScan V3.0
Vertical Space	250mm
Horizontal Space	150mm
Dimension	622x313x992mm
Gross/Net Weight	200Kg/170Kg
Power Supply	AC 220V/110V±5%，50~60 Hz
Conform Standard	GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243
Accuracy
Hardness Range	Permitted Error	Repeatability
HBW≤ 125	≤± 3.5％	≤ 3.5％
125＜HBW≤225	≤± 2.5％	≤ 3.0％
HBW＞ 225	≤± 2.0％	≤ 2.5％

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

We mainly mainly research, develop, manufacture and sell geometric dimension measurement instruments and precision devices such as multisensory coordinate measuring machines, fully automatic vision measuring machines, 2D optical measuring machines, profile projectors, tool microscopes, video microscopes, and precision displacement platforms.
