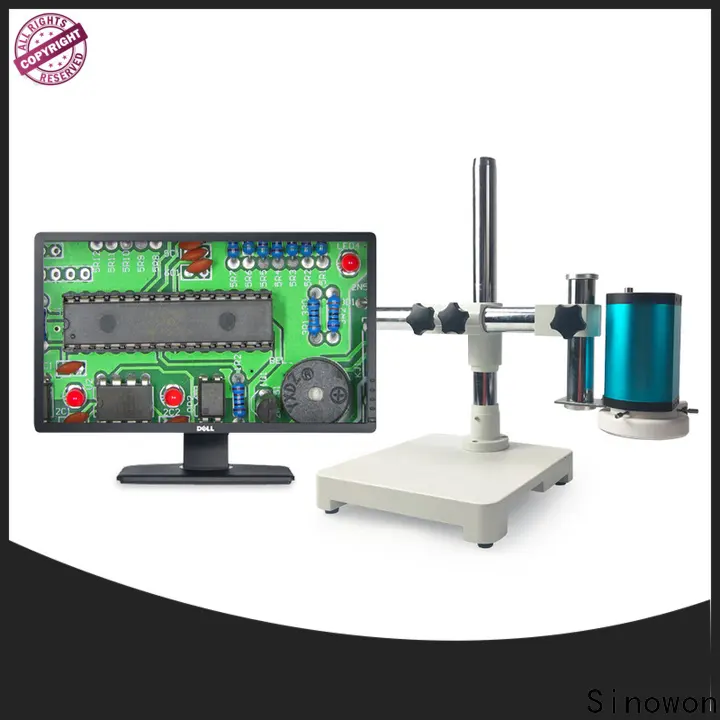

Sinowon inspection microscope supplier for steel products
Product Applications:
Incoming inspection, production inspection, material research, PCB and SMT inspection and analysis, printing, textile inspection, biological autopsy, medical testing and other fields.
Product Feature
◆ The integrated design of autofocus and zoom, eliminating the need for time-consuming and laborious frequent focus adjustments；
◆ High working distance, large field of view, up to 28x zoom ratio；
◆ Equipped with a high-definition HDMI camera, directly connected to the monitor for taking pictures or videos；
◆ Cast iron base, rust and wear resistant metal column, aluminum alloy crossbar with rack and pinion telescopic adjustment；
◆ With universal support, expand the operating range, can be any direction to observe objects, three-dimensional sense of strong；
◆ 4K HD image quality with true color reproduction；
◆ USB output video resolution, supporting up to YUV 4K@20fps；
◆ Rich output interfaces and control interfaces, supporting multiple control interfaces such as mouse and keyboard；
◆ Equipped with adjustable dual fiber optic light source, independent control of light brightness;
◆ Optical magnification 1x~28x, digital magnification 1x~3x, support digital magnification.
Universal bracket for viewing in any direction
Imaging Effect
Specification
Commodity | Universal Video Microscope | |
Model | VM-128 | |
Article Code # | 451-128 | |
Digital Magnification | Zoom ratio 1x~28x | |
Optical Magnification | 1x~3x | |
Camera Parameter | Sensor Type | Color CMOS |
Effective Pixel | 8 Million Pixel | |
Target Surface Size | 1/2.8〞 | |
Menu | Full Digital UI Design | |
Display Frame Rate | 4K@20fps/1080P@50fps | |
Scanning Method | Line by Line Scanning | |
White Balance | Manual / Automatic | |
Exposure Method | Manual / Automatic | |
Electronic Shutter Speed | 1/50s(1/60s)～1/10000s | |
Working Distance | 10cm～∞ | |
Menu | Full Digital UI Design | |
Storage Method | PC-USB | |
Working Power | DC12V | |
Output Method | USB/ Web Port /HDMI | |
Vertical Column Height | 380mm | |
Diameter | φ32mm | |
Horizontal Movement | 235mm | |
Base | 230x230x40mm | |
Dimension | 490x230x430mm | |
Application Industry | SMT, PCB, BGA etc. | |
Working distance to Zoom Ratio：
Magnification (zoom ratio) | FOV（100mm Working Distance） | FOV（300mm Working Distance） |
1X | 165mm*89mm | 441mm*240mm |
2X | 97mm*54mm | 227mm*128mm |
3X | 72mm*40mm | 161mm*91mm |
4X | 60mm*34mm | 126mm*71mm |
5X | 53mm*29mm | 106mm*60mm |
14X | 23.4mm*13mm | 46.6mm*26mm |
Standard Configuration
Commodity | Specification | Commodity | Specification | Commodity | Specification |
Instrument mainframe | VM-128 | Power adapter | DC12V | Mouse | Wireless |
Optional Accessories
Commodity | Code # | Commodity | Code # | Commodity | Code # |
0.5X accessory objective lens | 423*053 | 2X accessory objective lens | 423*203 | 17”HD LCD | 484-465 |
Double Fiber Optic Light Source SLG-20 | 413-228 | Color CMOS camera | 484-121 | Certificate of Conformity / Warranty Card / Packing List / Manual | VM-128 |
