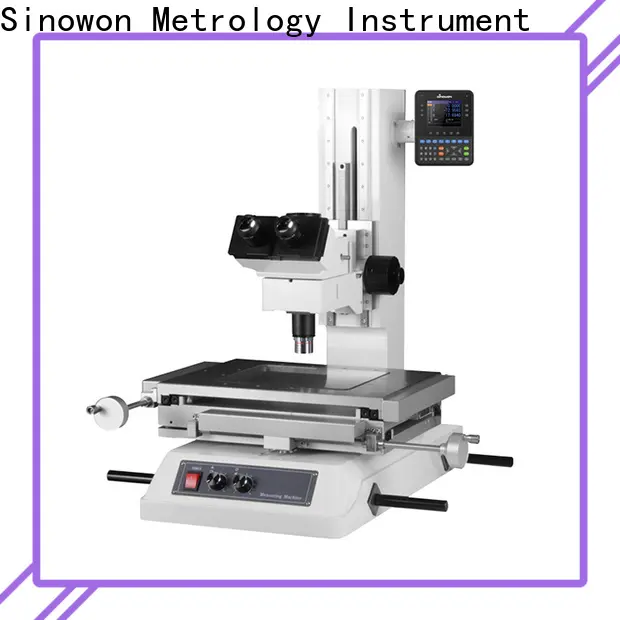

Sinowon measuring microscope with good price for cast iron
Model:
STM-3020A
Code#:
532-160
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Sinowon mitutoyo toolmakers microscope manual is made of selected materials that are of high quality. More than 10,000 pcs have been delivered and installed
2. The use of this product helps people reduce their working hours and helps relieve them from tiring works and heavy tasks. The product is well known for high accuracy and great stability
3. This product can retain its original shape. It has passed a compression and recovery test, making it not subject to static and dynamic compression loads in the course of standing or walking. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
4. This product is sanitary. It is designed with minimal crevices and with areas that are easy to clean and disinfect. It is well recognized by more than 5000 customers
![Sinowon measuring microscope with good price for cast iron 8]()
![Sinowon measuring microscope with good price for cast iron 9]()
![Sinowon measuring microscope with good price for cast iron 10]()
![Sinowon measuring microscope with good price for cast iron 11]()
Company Features
1. Sinowon plays a great role in leading the trend of Chinese measuring microscope industry.
2. In order to achieve technological innovation, Sinowon Innovation Metrology Manufacture Limited. has established its own research and development base.
3. Focusing on building a future-oriented toolmaker is our aim. Please contact us!
1. Sinowon mitutoyo toolmakers microscope manual is made of selected materials that are of high quality. More than 10,000 pcs have been delivered and installed
2. The use of this product helps people reduce their working hours and helps relieve them from tiring works and heavy tasks. The product is well known for high accuracy and great stability
3. This product can retain its original shape. It has passed a compression and recovery test, making it not subject to static and dynamic compression loads in the course of standing or walking. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
4. This product is sanitary. It is designed with minimal crevices and with areas that are easy to clean and disinfect. It is well recognized by more than 5000 customers
Product Feature
◆ Bright field observation, clear and flare less obverse image, wide field of view;
◆ Long working distance objectives, up to optical 1000x magnification;
◆ Aperture diaphragms in the transmitted illumination and reflected illumination system as standard feature;
◆ The quick-release system, which is especially useful in long-stroke measurements;
◆ Focus and measure using the fine/coarse movement handle with the large-size grips on both sides of the column;
◆ Zero-set switches (X- and Y-axis) are also located near the stage feed handles;
Specification
| Microscope Model | STM-2015A | STM-3020A |
| Code # | 532-150 | 532-160 |
| X/Y-axis travel | 200x150mm | 300x200mm |
| Scale Resolution | 0.0005mm | |
| XY Stage Measuring Accuracy at 20ºC. | (2+L/200) μm L: measuring length | |
| Observation Image | Obverse image | |
| Eyepiece Tube | Binocular Eyepiece: WF10/20 | |
| Objective Lens | Only 5x is standard delivery; Optional: 10X, 20X, 50x 100x | |
| Contour Illumination | Adjustable LED | |
| Surface Illumination | Adjustable LED | |
| Z Axis Travel Range | Standard focus travel:150mm, 200mm is optional | |
| Z Axis Focusing | Manual focusing (Coarse/fine) | |
| XY Stage Floating Function | Quick release mechanism | |
| Display Unit Function | Zero setting, Direction switching, Data output via RS-232 | |
| Power Supply | AC220/50HZ; AC110V/60Hz | |
| Optional Accessories | High-Precision Rotary Table RT4(D:165mm), RT5(262mm) | |
| Digital Readout DP300 | ||
| Quickmeasuring Measuring Software QM2.0 | ||
| CCD adapter and CCD camera | ||
Optical Specification:
| Name | Objective | Eyepiece WF10/22 | |||||
| N.A. | W.D.(mm) | f(mm)’ | R(um) | ±▽p(um) | Magnification | Visual Field（mm） | |
| 5x | 0.15 | 11.6 | 40 | 2.1 | 16.3 | 50x | ¢4.4 |
| 10x | 0.3 | 6.3 | 20 | 0.9 | 3.1 | 100x | ¢2.2 |
| 20x | 0.4 | 10.3 | 10 | 0.69 | 1.8 | 200x | ¢1.1 |
| 50x | 0.8 | 2 | 4 | 0.34 | 0.4 | 500x | ¢0.44 |
| 100x | 0.8 | 1.96 | 2 | 0.34 | 0.2 | 100x | ¢0.22 |
Product Details
Company Features
1. Sinowon plays a great role in leading the trend of Chinese measuring microscope industry.
2. In order to achieve technological innovation, Sinowon Innovation Metrology Manufacture Limited. has established its own research and development base.
3. Focusing on building a future-oriented toolmaker is our aim. Please contact us!
