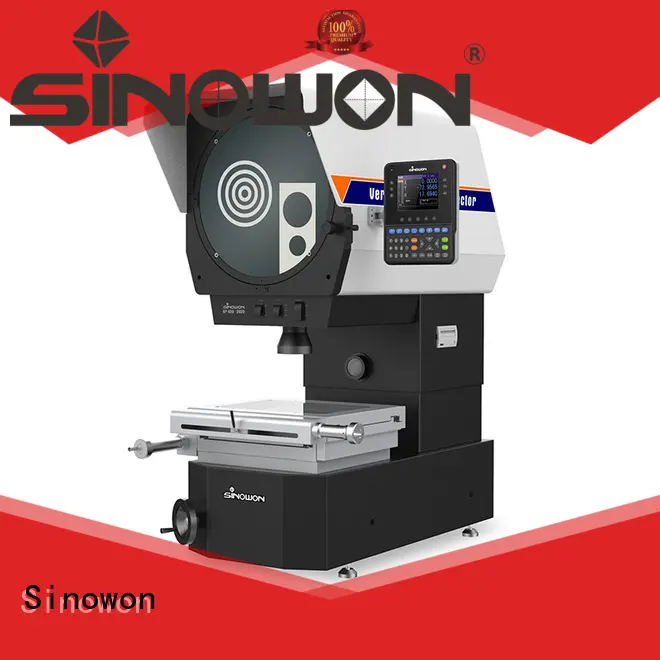

Sinowon optical comparator personalized for small areas
Model:
VP420-3020
Code#:
#511-450
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Materials for optical comparator will be small optical comparator to provide long service life. A team of experienced talents is gathered to support the product sales
2. The product has potential development prospects thanks to the explosive growth of market demands. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. The product has passed all relative certificates of quality. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
4. International advanced technology is imported to improve its performance. The product is designed by professional designers to be user-friendly.
5. This product is rigorously tested on various parameters of quality to ensure high durability. The product is verified by ISO9001:2015 to be quality ensured
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. started with production of optical comparator. Sinowon Innovation Metrology Manufacture Limited. has a strong optical measurement manufacturing capability.
2. vertical projector is manufactured using international advanced technology facilities.
3. In the small optical comparator production process, we use advanced manufacturing techniques. Sinowon Innovation Metrology Manufacture Limited. will strive to enhance its competitive advantage through continuous innovation on optical profile projector . Ask online!
1. Materials for optical comparator will be small optical comparator to provide long service life. A team of experienced talents is gathered to support the product sales
2. The product has potential development prospects thanks to the explosive growth of market demands. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology
3. The product has passed all relative certificates of quality. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
4. International advanced technology is imported to improve its performance. The product is designed by professional designers to be user-friendly.
5. This product is rigorously tested on various parameters of quality to ensure high durability. The product is verified by ISO9001:2015 to be quality ensured
Product Feature
◆ Ø400mm optical projection screen;
◆ Projector body lifting focus system;
◆ Stage can bear 30Kg Large load capacity;
◆ Telecentric Cold LED lightsoruce;
◆ High powerful and colorful DRO DP400;
◆ Optional 5x optical objective is available;
Specification
| Product Name | Ø400mm Digital Vertical Profile Projector |
| Reverse Image | VP420-3020(#511-450) |
| Obverse Image | VP420-3020Z(#511-430Z) |
| Metal Stage Size | 458x358mm |
| Glass Stage Size | 356x248mm |
| Stage Travel | 300x200mm |
| Product Dimension(L×W×H) | 1003x617x1309mm |
| Packing Dimension(L×W×H) | 1200x800x1580mm |
| Focusing | 100mm |
| Accuracy | ≤3+L/200(um) |
| Resolution | 0.0005mm |
| Load Weight | 30Kg |
| Screen | Dia:φ412mm,Measurement Range ≥ Ø400 |
| Rotation Angle 0~360° ;Resolution: 1 or 0.01°，Accuracy 6 | |
| Digital Readout | DP400 (510-340) Multifunction colorful LCD digital readout |
Illumination | Contour Illumination：3.2V/10W LED Surface Illumination：3.2V/10W LED |
| Working Environmental | Temp 20℃±5℃，Humidity 40％－70％RH |
| Power Supply | AC110V/60Hz; 220V/50Hz,150W |
| Gross/Net Weight | 280/230kg |
Objective lens:
| Magnification | VP400-5X | VP400-10X | VP400-20X | VP400-50X |
| Code # | 511-100 | 511-150 | 511-160 | 511-170 |
| Field of View | φ80mm | Φ30mm | Φ15mm | Φ6mm |
| Working Distance | 65mm | 80mm | 67.5mm | 51.4mm |
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. started with production of optical comparator. Sinowon Innovation Metrology Manufacture Limited. has a strong optical measurement manufacturing capability.
2. vertical projector is manufactured using international advanced technology facilities.
3. In the small optical comparator production process, we use advanced manufacturing techniques. Sinowon Innovation Metrology Manufacture Limited. will strive to enhance its competitive advantage through continuous innovation on optical profile projector . Ask online!
