A professional manufacturer of measuring & testing equipment.

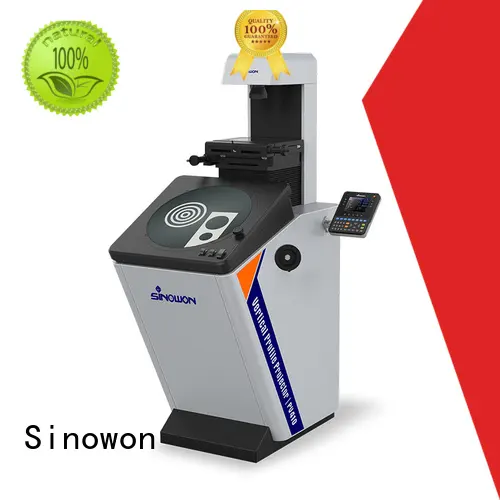

Sinowon optical comparator supplier for small parts 1
Sinowon optical comparator supplier for small parts 2
Sinowon optical comparator supplier for small parts 1
Sinowon optical comparator supplier for small parts 2

Sinowon optical comparator supplier for small parts

Model:
PV410-2010
Code#:
#511-440
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Product Comparison
hardness testing machines is a truly cost-effective product. It is processed in strict accordance with relevant industry standards and is up to the national quality control standards. The quality is guaranteed and the price is really favorable. hardness testing machines has the following differentiated advantages compared with other products in the same category.
  • Sinowon optical comparator supplier for small parts 3
    Sinowon optical comparator supplier for small parts 4
Company Advantages
1. optical comparator is celebrated for its exquisite craftsmanship and full range of specifications.
2. This product has the advantage of tensile strength. The structure of the fabric is totally tightened and fibers are finely woven to enhance the strength.
3. It has a strong visual beauty. The product has a high-grade veneer that is done manually with high-quality paint to showcase its overall beauty.
4. With the use of this product, people won't feel like pain and discomfort after walking or running miles because it provides maximum comfort.


Sinowon optical comparator supplier for small parts 5



Product Feature


The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

Coating process reflector, clearer image and great dustproof;

Adjustable contour and surface illumination, to meet with difference workpiece demand;

Imported high light and long using life LED illumination ,to ensure precision measurement demand;

High resolution optical system with clear image and magnification error is less than 0.08%;

Powerful Bi-axial fan cooling system,highly increase using life;

Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

Built-in Mini-printer, can print and save data;

With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot switch ,clamp, etc.


Specification



Product NameDigital Vertical Profile Projector
ModelPV410-2010
Code##511-440
Table Size308x408mm
Glass Table Size198x306mm
XY Travel Range200x100mm
Z Travel Range100mm (调焦)
Accuracy≤3+L/200(um)
Resolution0.001mm
Max. Workpiece Load10Kg
ScreenEffective Diameter:φ412mm ≥ Ø400mm
 Screen rotation 0~360° ; Resolution: 1’or 0.01°, accuracy: 6’
CounterDP400 (510-340)powerful digital readout
IlluminationTransparent:3.2V/10W LED
     Reflected illumination :3.2V/10W LED
Operating Environment20℃±5℃,RH 40%-70%RH
PowerAC110V/60Hz; 220V/50Hz,150W


Objective lens:


MagnificationPV410-5XPV410-10XPV410-20XPV410-50X
View fieldφ80mm φ40mm φ20mm φ8mm
Working distance65mm80mm67.7mm51.4mm




Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has outshined a large number of peer enterprises and has taken the lead in the manufacturing of optical comparator.
2. Sinowon has introduced highly delicate technology to making sure the quality of optical measurement .
3. Sinowon Innovation Metrology Manufacture Limited. commits to ensure our optical measurement machine will bring real values to our customers. Check it! Sinowon Innovation Metrology Manufacture Limited. aims to be your global partner. Check it!
