A professional manufacturer of measuring & testing equipment.

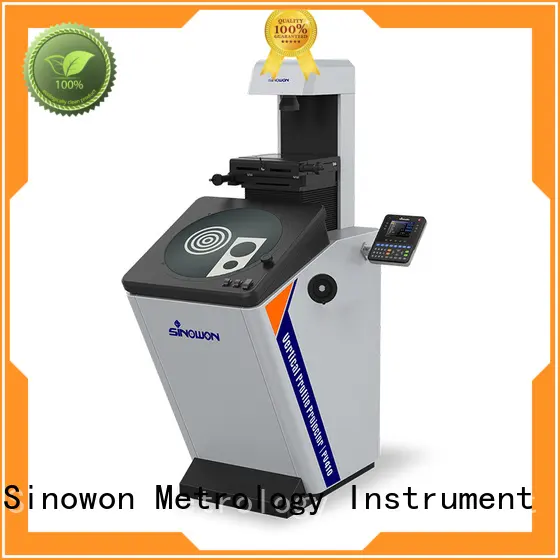

Sinowon optical measurement factory price for thin materials 1
Sinowon optical measurement factory price for thin materials 2
Sinowon optical measurement factory price for thin materials 1
Sinowon optical measurement factory price for thin materials 2

Sinowon optical measurement factory price for thin materials

Model:
PV410-2010
Code#:
#511-440
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Inquiry
Product Comparison
Good materials, advanced production technology, and fine manufacturing techniques are used in the production of optical measurement instruments. It is of fine workmanship and good quality and is well sold in the domestic market.optical measurement instruments's outstanding advantages are as follows.
  • Sinowon optical measurement factory price for thin materials 3
    Sinowon optical measurement factory price for thin materials 4
Product Details
In the production, Sinowon believes that detail determines result and quality creates brand. This is the reason that we strive for excellence in every product detail.Under the guidance of market, Sinowon constantly strives for innovation. optical measurement instruments has reliable quality, stable performance, good design, and great practicality.
  • Sinowon optical measurement factory price for thin materials 5
Company Advantages
1. The new type of optical measurement designed by our engineers is very ingenious and practical.
2. It is extremely chemically resistant. The surface is treated with a protective chemical coating or protective paint to prevent dusts from entering.
3. Caring service is Sinowon Metrology Instrument's highest requirement.
4. Sinowon Innovation Metrology Manufacture Limited. counts with a nationwide net of agents to attend any specific requirement of each customer.


Sinowon optical measurement factory price for thin materials 6



Product Feature


The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive more comfortable and stable;

Coating process reflector, clearer image and great dustproof;

Adjustable contour and surface illumination, to meet with difference workpiece demand;

Imported high light and long using life LED illumination ,to ensure precision measurement demand;

High resolution optical system with clear image and magnification error is less than 0.08%;

Powerful Bi-axial fan cooling system,highly increase using life;

Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;

Built-in Mini-printer, can print and save data;

With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot switch ,clamp, etc.


Specification



Product NameDigital Vertical Profile Projector
ModelPV410-2010
Code##511-440
Table Size308x408mm
Glass Table Size198x306mm
XY Travel Range200x100mm
Z Travel Range100mm (调焦)
Accuracy≤3+L/200(um)
Resolution0.001mm
Max. Workpiece Load10Kg
ScreenEffective Diameter:φ412mm ≥ Ø400mm
 Screen rotation 0~360° ; Resolution: 1’or 0.01°, accuracy: 6’
CounterDP400 (510-340)powerful digital readout
IlluminationTransparent:3.2V/10W LED
     Reflected illumination :3.2V/10W LED
Operating Environment20℃±5℃,RH 40%-70%RH
PowerAC110V/60Hz; 220V/50Hz,150W


Objective lens:


MagnificationPV410-5XPV410-10XPV410-20XPV410-50X
View fieldφ80mm φ30mm φ15mm φ6mm
Working distance65mm80mm67.7mm51.4mm




Company Features
1. Today, many companies trust Sinowon Innovation Metrology Manufacture Limited. to manufacturing vertical profile projector because we offer skill, craftsmanship, and a customer-oriented focus.
2. The Sinowon Technology Center has been focusing on forward-looking technologies at home and abroad, with the aim of applying technology to the production process.
3. We are fully confident in the quality of our optical measurement . Get price! Sinowon Innovation Metrology Manufacture Limited.'s determined to keep our team and products perfect. Get price! Sinowon Innovation Metrology Manufacture Limited.'s value is to provide high-quality optical gaging products for every suppliers. Get price!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
