Sinowon portable hardness tester factory for small areas
1. With rational construction, portable hardness tester takes on in a better way. The product is analyzed and tested cautiously before packing
2. This product is bound to provide an enduring look and appeal for any space. And its beautiful texture also gives character to space. The product is well used in many large engineering projects
3. The product uses intelligent design. Any problems in the production process at any time will shut down the system to avoid further problems or fix problems internally. The product is verified by ISO9001:2015 to be quality ensured
4. This product uses the highest quality fabrics to let users know how durable it is! It has the best softness that users can see and feel! It is up to both domestic and international standards
5. The product features heat resistance. The structural materials used in it is characterized by a low thermal expansion coefficient, which makes it keep stable under heat. It, up to the requirements from different industries, is widely applied

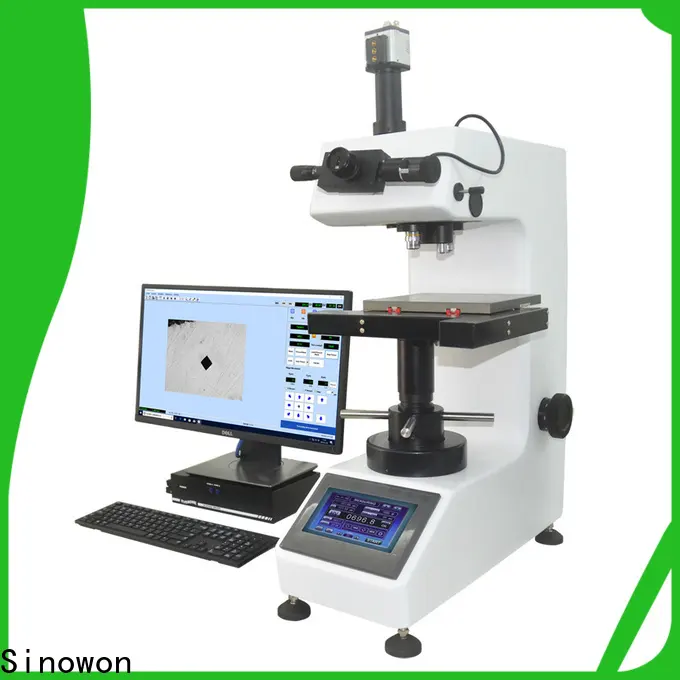

Sinowon AutoVicky ZHV-50A is Auto macro Vickers hardness tester with outfit of motorized X-Y auto-stage, it has auto-measurement about the indentation of Vickers, and it can make measurement of case depth automatically, it eliminates human operation error, largely improves working efficiency, makes Vickers hardness testing measurement more accurate and uncomplicated.
Product Characteristics
◆ Auto-stage, Auto-Turret, Auto-measurement and Vickers testing system;
◆ Loading-force: Precise dead weights ensures the loading force system reliably and precisely;
◆ Optical-path: High-resolution optical microscopy path makes image of indention sharply and excellent;
◆ Auto-Turret: the switch position of Vickers indenters and 10x/20x objectives is repeatable and accurately;
◆ Auto-stage: it is driven by precise step motor with large travel size 100x100mm and heavy load ability ;
◆ Auto-Measurement: automatic hardness testing and measurement software：3A can control hardness tester and data communication, includes the switch of 10x, 20x objectives and Vickers indenter, auto loading, dwell and unloading, single or multiple indentation, set step distance, movement mode, auto record indentation dialog line and hardness value, auto generate CHD depth and hardness curve, error statistics, test times group statistics, generate Excel and Word format report.
Specification
Automatic Marco Vickers Hardness Tester | ||
Model | AutoVicky ZHV-50A | |
Code# | 822-330A | |
Focus-Mode | Manual-focus | |
Load-System | High-precision-weight | |
Test Load | Kgf | 1 /2/ 3 / 5 / 10 / 20 / 30/50 |
N | 9.807 / 19.614 / 29.421 / 49.035 / 98.07 / 196.14 / 294.21 / 490.35 | |
Objective | Standard | 10x and 20x |
Option | 5x, 40X | |
Loading-Mode | Automatic loading, dwell and unloading | |
Dwell Time | 5 ~ 99 s can be adjustable | |
Turret System | Automatic | |
160mm Dual Optical Microscopy System | High-resolution Optical Microscopy Path 10x digital measuring eyepiece 20x objective for Vickers measurement 0.5x C-mount with camera for dual vision measurement | |
Magnification | Optical observation magnification : 100x ( 10x Objective and 10x Eyepiece ) | |
Optical measurement magnification :200x ( 20x Objective and 10x Eyepiece ) | ||
Digital observation magnification: 350x | ||
Digital measurement magnification: 700x | ||
Light Source | LED parallel Illuminator | |
Digital Image System | 0.5x C-adapter and 1.3Mpixel CMOS camera | |
Max. Specimen Height | 200mm | |
Max. Specimen Depth | 160mm | |
Hardness Scale | HV1/HV2/HV3/HV5/HV10/HV20/HV30/HV50 | |
Auto-Stage | Type | Motorized |
Dimensions | 200 × 180 mm | |
X-Y Travel | 100 × 100 mm | |
Motorized | Step motor | |
Resolution | 0.5um | |
Driving Controller | Vickycontrol2000 | |
Hardness Testing Software | 3A: Auto-stage; Auto-measurement | |
PC system | DELL OptiPlex3046MT | |
LCD monitor | 21.5” Dell LCD Monitor | |
Executive Standard | ASTM E-92, ISO 6507, GB/T4340 | |
Dimensions | W 226 × D 560 × H 660 mm | |
Net. Weight | 72Kg | |
Power Supply | AC 220V/50Hz or 110V/60 Hz | |
Company Features
1. We have quality-minded staff, including designers, developers, consultants, customer service workers, programmers, and producers. They are well-trained and have the ability and experience to provide solutions and services.
2. Sinowon Innovation Metrology Manufacture Limited. will make unremitting efforts for portable hardness tester development. Get price!
