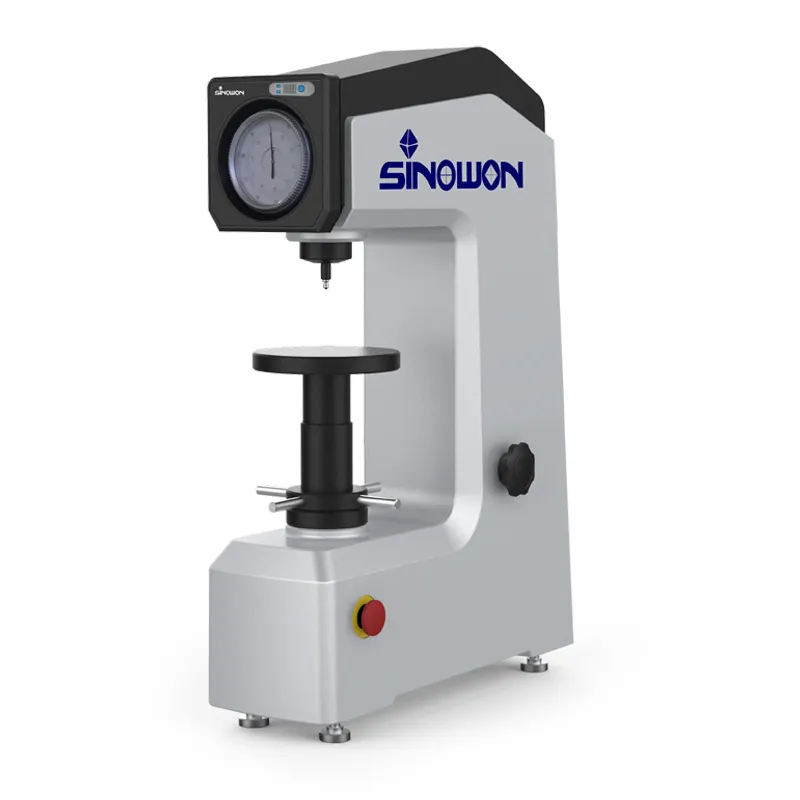

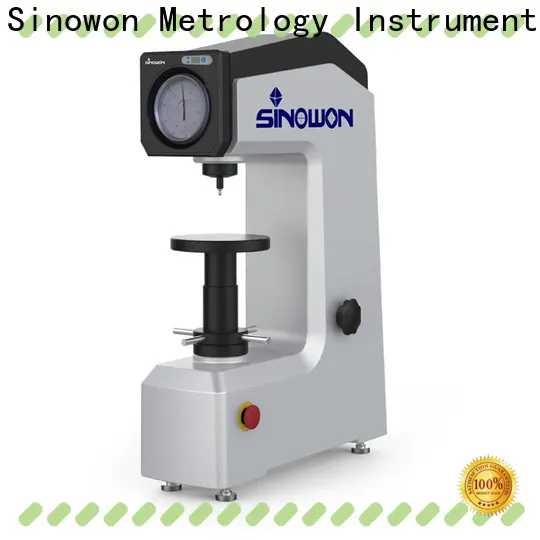

Sinowon quality rockwell hardness unit series for small parts

Model:
DigiRock MS2
Code#:
811-220
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ISO 6508,ASTM E18,GB/T230
Certificate:
CE
Inquiry
Company Advantages
1. Chemicals used in Sinowon hardness testing machine price color do not include formaldehyde, chlorine bleach, carcinogenic and sensitizing dyes, all of which are known to be harmful to human health. The product is well used in many large engineering projects
2. This product has great strength and can maintain its good shape after used for many years. - One of our customers said. It, up to the requirements from different industries, is widely applied
3. The product is able to retain its shape. The insole, midsole, cork filling, outer sole, and heel are all manufactured to be sturdy to withstand pressure. The product is excellent in dust prevention
4. The product has a definite elasticity. It is able to regain its initial shape and size after removal of load. It can be customized according to customers' needs
5. The product features enough durability. Its outsole a stiff and heavy material with good flexibility, which can last for a long time. The product is well known for high accuracy and great stability

Sinowon quality rockwell hardness unit series for small parts 3



Product Feature


 DigiRock MS2 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;

 DigiRock MS2 dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester;

 DigiRock MS2 force knob adopts the metal material to replace the plastic,it largely improves the instrument using-lifet;

 DigiRock MS2 loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum;

 DigiRock MS2 intenter protector is available to improve the using lifetime of indenter.


Specification



Product NameMotorized Superficial Rockwell Hardness Tester
ModelDigiRock MS2
Code#811-220
Rockwell ScalesHR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Preliminary Test Force3Kgf(29.42N)  Permitted Error:±2.0%
Addtional Test Fore147.1N(15kg)、294.2N(30kg)、441.3N(45kg)   Permitted Error:±1.0%
Dwell TimeAdjustable 1-60s
Hardness IndicationAnalogue Display
Resolution0.5HR
Loading Control

Motorized

Max. Height Of Specimen175mm
Instrument Throat165mm
Power supplyAC220V/50Hz;AC110V/60Hz
Dimension(LxWxH)546x182x755mm
Packing Dimension620x460x870mm
Gross/Net Weight120Kg/90Kg
Execution StandardISO 6508,ASTM E18,JIS Z2245,GB/T230
