Sinowon reliable micro vickers from China for measuring
Characteristics
◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;
◆ It is equipped with 10X and 40X HD lens and HD USB camera, the instrument measured images in optical imaging system and video of great quality;
◆ Combined with MV-1000 video measuring devices, It improves efficiency, reduces visual fatigue of the operator.
Application Range
◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;
◆ Measuring hardness of the surface of a part, small parts or small areas;
◆ Measuring individual micro-structures;
◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.
Specification

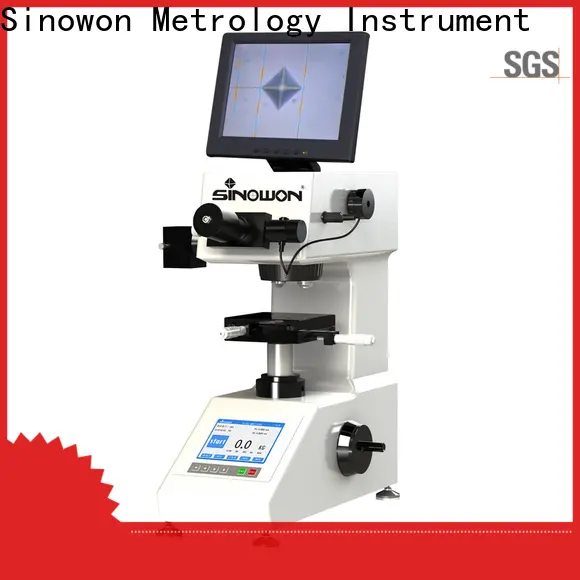

| Product Name | Micro Hardness Tester with Measurement Monitor | |
| Model | MV-1000V | |
| Code# | 823-101V | |
| Loading force | N | 0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80 |
| Kgf | 10、25、50、100、200、300、500、1000 | |
| Indentation Measuring Device | MV-100 | |
| Switch of Objectives and Pressure Switch | Auto-turret | |
| Loading Control | Auto Loading, Dwell and Unloading | |
| Magnification of Objective | Observation：10x/40x；Measurement：10x/40x | |
| Video System | CMOS Measuring Eyepiece, 8 "Display | |
| Dwell Time | 5-60s | |
| Measuring Range | 1HV-2967HV | |
| X-Y Anvil | Size：100X100mm； Travel：25mm X 25mm;Resolution：2um | |
| Maximum Height and Width of Specimen | Maximum Height：70mm; Maximum Width：95mm | |
| Power supply | AC220/50Hz; AC110V/60Hz | |
| Dimension | 425X245X490mm | |
| Gross/Net Weight | 45kg/35Kg | |
| Executive Standard | GB/T4340.2, EN-ISO6507,ASTME10-08,ASTME-384 | |
