Sinowon rockwell hardness tester for sale supplier for steel products
1. Sinowon rockwell hardness tester for sale is made of fine-particle clay, which is typically comprised of feldspar, kaolin, and quartz, with the advanced firing technique at high temperature. The product is verified by ISO9001:2015 to be quality ensured
2. The product can help people reduce their carbon footprint by reducing metal waste. People can recycle the product and send it to the metal factory for reprocessing. Its packing is made seriously to guarantee the safety during shipment
3. This product is safe for humans and the environment. It has passed the eco textile testing which indicates that it contains no banned azo colorants, heavy metals, etc. It is easy to operate, with fast speed
4. This product is built to bear a large amount of pressure. Its reasonable structure design allows it to withstand a certain pressure without damage. A quality control system is implemented for the product

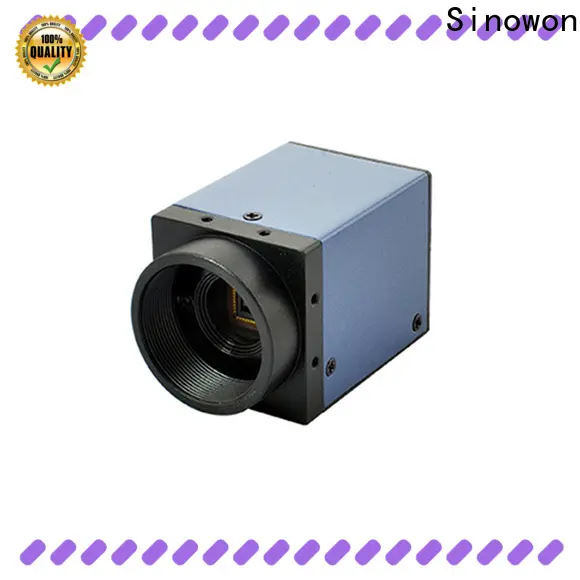

1/3” Analog Color Video Camera
Vicam6.0
Vicam6.0 is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.
Technical Specifications：
Commodity | 1/3” Analog Camera of Vision Measuring Machine |
Model | ViCam6.0 |
Video Signal System | Type E: PAL |
Sensor | Diagonal 6.0mm 1/3” Exview CCD |
Unit cell size | 6.5um(H)X6.25um(V) |
Number of pixels | approx. 470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 650TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms |
Video process | Bio-ele image processing ele ext-Fx TM |
Sensitivity | 0.1Lux |
S/N ratio | 54dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(1800 °K~10500 °K) |
AES | OSD set: 8-level manual/auto: 1/50s~1/10,0000s |
OSD | available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Power consumption | Approx. 1.5W; recommended: +12VDC |
Operating temperature | 0℃ to +40℃ (recommended) |
Dimension | 60.0 (L)×48.5 (W)×58.0 (H) mm |
Weight | approx. 155g |
1/2” Analog Color Video Camera
Vicam8.0
Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.
Technical Specification:
Commodity | 1/2” Analogue Color Video Camera |
Model | Vicam8.0 |
Signal system | Type E: PAL standard |
Sensor | 1/2” 8.6um(H)X8.3um(V) |
Number of pixels | Approx.470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 700TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75 ohms: C:0.3Vp-p 75 ohms |
Video process | ele ext-Fx |
Sensitivity | 0.001Lux |
S/N ratio | 63dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(2300° K~11000° K) |
Image adjustment | OSD set, Brightness, contrast ratio, and sharpness, Chroma, gain |
Language | OSD set,8 English/Chinese/France/German/Portuguese/Spanish |
OSD | Available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Lightening proof | isolated 10/700us 4000V; follow IEC61000-4.5, ITU-T K20/21 |
Power consumption | approx. 2.4W +12V DC |
Operating temperature | 0℃ to ~40℃ |
Dimension | 127.1 (L)×68.8 (W)×48.7 (H) mm |
Weight | approx. 400g |
