Sinowon stable rockwell hardness tester for sale scales for nonferrous metals
1. Sinowon inspection microscope with camera is produced at the same location and on the same equipment, which ensures consistency over large runs and multiple orders.
2. The product has passed the international quality certification, assuring that it is of great quality.
3. This product has been reviewed and certified to meet the most stringent quality requirements.
4. Quality always comes in a more obvious place in Sinowon Innovation Metrology Manufacture Limited..
5. The quality rockwell hardness tester for sale products is the fundamental to the development of enterprises.

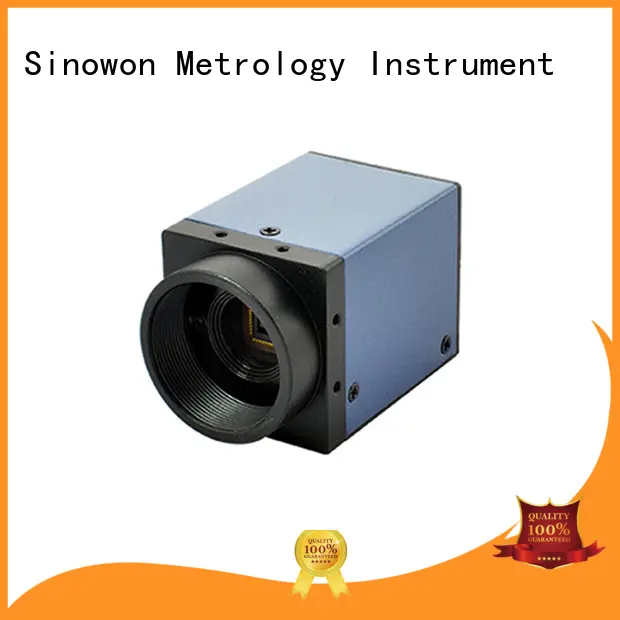

1/3” Analog Color Video Camera
Vicam6.0
Vicam6.0 is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.
Technical Specifications：
Commodity | 1/3” Analog Camera of Vision Measuring Machine |
Model | ViCam6.0 |
Video Signal System | Type E: PAL |
Sensor | Diagonal 6.0mm 1/3” Exview CCD |
Unit cell size | 6.5um(H)X6.25um(V) |
Number of pixels | approx. 470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 650TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms |
Video process | Bio-ele image processing ele ext-Fx TM |
Sensitivity | 0.1Lux |
S/N ratio | 54dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(1800 °K~10500 °K) |
AES | OSD set: 8-level manual/auto: 1/50s~1/10,0000s |
OSD | available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Power consumption | Approx. 1.5W; recommended: +12VDC |
Operating temperature | 0℃ to +40℃ (recommended) |
Dimension | 60.0 (L)×48.5 (W)×58.0 (H) mm |
Weight | approx. 155g |
1/2” Analog Color Video Camera
Vicam8.0
Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.
Technical Specification:
Commodity | 1/2” Analogue Color Video Camera |
Model | Vicam8.0 |
Signal system | Type E: PAL standard |
Sensor | 1/2” 8.6um(H)X8.3um(V) |
Number of pixels | Approx.470K pixels |
Scanning system | 2:1 interlaced |
Resolution | 700TVL |
Video output | composite video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75 ohms: C:0.3Vp-p 75 ohms |
Video process | ele ext-Fx |
Sensitivity | 0.001Lux |
S/N ratio | 63dB (AGC: OFF) |
ATW | OSD set: Push lock/ manual/auto(2300° K~11000° K) |
Image adjustment | OSD set, Brightness, contrast ratio, and sharpness, Chroma, gain |
Language | OSD set,8 English/Chinese/France/German/Portuguese/Spanish |
OSD | Available |
Sync mode | internal lock |
Lens drive | DC |
Lens mount | C/CS mount |
Lightening proof | isolated 10/700us 4000V; follow IEC61000-4.5, ITU-T K20/21 |
Power consumption | approx. 2.4W +12V DC |
Operating temperature | 0℃ to ~40℃ |
Dimension | 127.1 (L)×68.8 (W)×48.7 (H) mm |
Weight | approx. 400g |
Company Features
1. Our rockwell hardness tester for sale wins us many distinguished customers, such as inspection microscope with camera .
2. Sinowon was working to enhance the standard of rockwell hardness tester for sale.
3. Our clean and big factory keep the production of rockwell hardness tester for sale in a good environment. Welcome to visit our factory! optical comparator service is the lifeblood and reputation of Sinowon Innovation Metrology Manufacture Limited.. Welcome to visit our factory!
