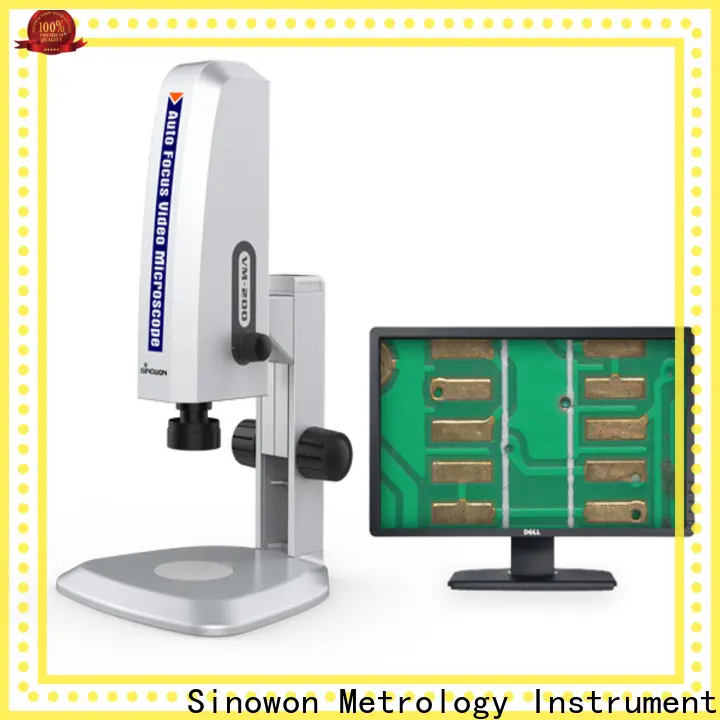

Sinowon stereo microscope supplier for inspection 1

Sinowon stereo microscope supplier for inspection 2

Sinowon stereo microscope supplier for inspection

Model:

VM-200

Code#:

451-420

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Sinowon stereo microscope supplier for inspection 3

Application:

Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.

Product Feature

◆ Integral design, exquisite, fashion, generous;

◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;

◆ With adjustable LED surface reflection illumination, is able to control brightness independently;

◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.

Specification

Product Name	Auto Focus Video Microscope
Model	VM-200
Code#	451-420
Electronic Magnification	32X~206X( VGA 4:3 21”Monitor；）
Optical Objective	0.7X~4.5X Horizontal Zoom Lens
	Zoom ratio：6.5:1
	0.5X C-mount Camera Adapter
Camera Parameters	2 million pixel (1920*1080)
	Image Size:1/2.86”
	Frames Per Second：30fps
Camera Function	Auto Focus
	Cross Line
	Photograph and Video Record
	Output： HDMI
	White Balance; Brightness Control; Digital Noise Reduction
Illumination	Surface: Adjustable LED Surface Illumination
Illumination	Ring Fiber Illumination Optional
Microscope Stand	Z-axis Travel: 100mm
Microscope Stand	Coarse Lifting System
Electrical Parameters	AC90~240V；50~60HZ
Dimension	310285500 mm
Weight	6Kg

Accessories:

Product Name	Specification
Microscope Main Body	VM-200
Power Adapter	DC5V（Camera）、DC12V（Illumination）
Monitor	Optional 4:3 21.5”
Operation Manual/Warranty Card/Certificate/Packing list	VM-200

Field of View:

Auxiliary objective	Field of view （0.5X Camera Adapter)																				Remark
	0.7X				1X			2X			3X			4X			4.5X				Remark
	Length		Width	Diagonal	Length	Width	Diagonal	Length	Width	Diagonal	Length	Width	Diagonal	Length	Width	Diagonal	Length	Width		Diagonal
0.5X WD:108mm	Magnification 0.18X-1.12X																				Optional
0.5X WD:108mm	25.29	22.86		34.09	17.70	16.00	23.86	8.85	8.00	11.93	5.90	5.33	7.95	4.43	4.00	5.97	3.93	3.56		5.30	Optional
1.0X WD:91mm	Magnification 0.35X-2.25X																				Standard
1.0X WD:91mm	12.64	11.43		17.04	8.85	8.00	11.93	4.43	4.00	5.97	2.95	2.67	3.98	2.21	2.00	2.98	1.97		1.78	2.65	Standard
2.0X WD:35.3mm	Magnification0.70X-4.50X																				Optional
2.0X WD:35.3mm	6.32	5.71		8.52	4.43	4.00	5.97	2.21	2	2.98	1.48	1.33	1.99	1.11	1.00	1.49	0.98		0.89	1.33	Optional

Software Introduction

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
