Sinowon vexus saroj hardness tester directly sale for measuring
Model:
DigiRock BRV2
Code#:
811-140
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
ISO 6508，ASTM E18，GB/T230
Certificate:
CE
Product Feature

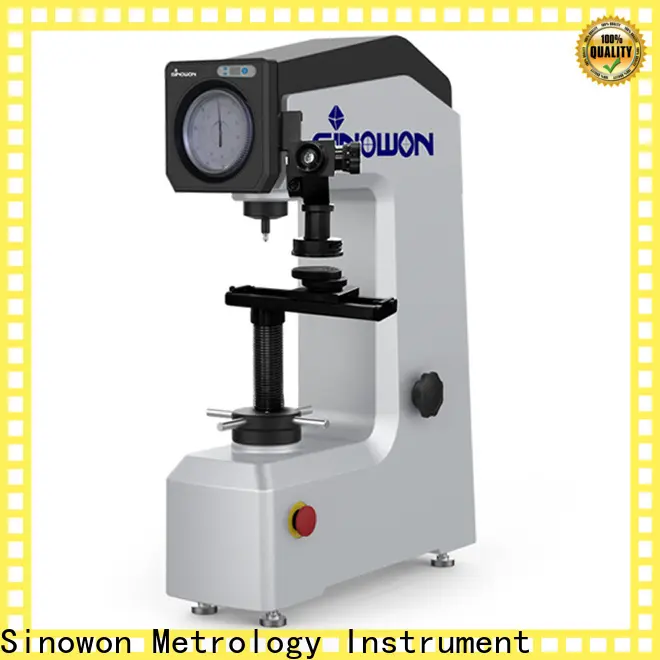

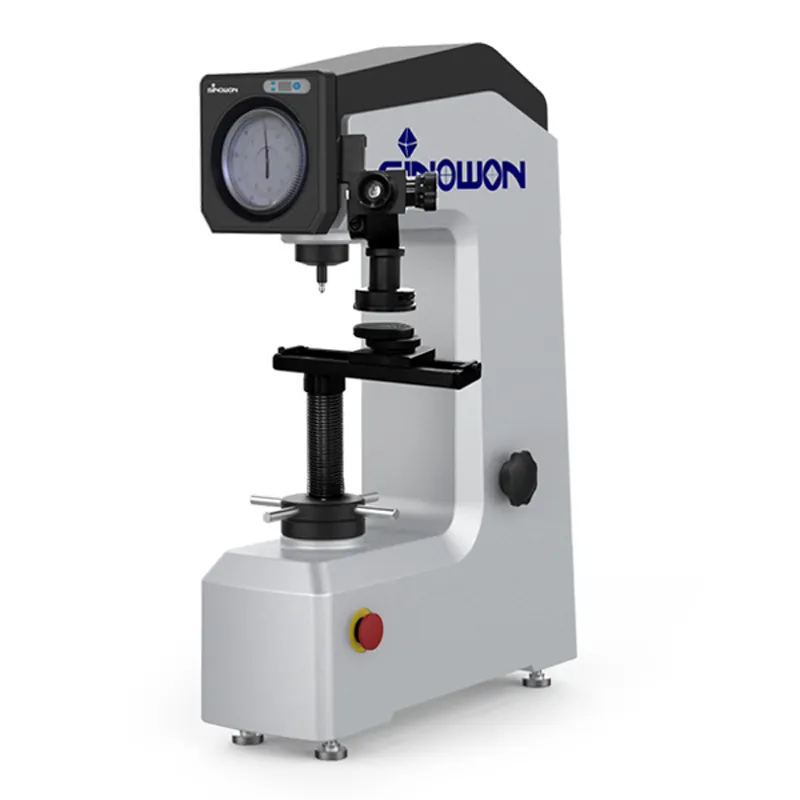

◆ DigiRock BRV2 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
◆ DigiRock BRV2 equips 7-testing-foce and 5-indenter, it is universal to measure a lot of material.
◆ DigiRock BRV2 dwell time from 1 to 60S can be setup by the “time key” on the panel, it is much convenient than the setup on the manual hardness tester;
◆ DigiRock BRV2 force knob adopts the metal material to replace the plastic, it improves the instrument using-life greatly;
◆ DigiRock BRV2 loading, dwell and unloading is driven by electronic motor automatically, doesn’t need the operator to handle it, it eliminates the human operating error maximum.
Specification
| Product Name | Motorized Universal Hardness Tester |
| Model | DigiRock BRV2 |
| Code# | 811-140 |
| Rockwell Scales | HRA, HRB, HRC |
| Rockwell Testing Force | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) |
| Brinell Scales | HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5 |
| Brinell Testing Force | 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N) |
| Vickers Scales | HV 30、HV100 |
| Vickers Testing Force | 30Kgf(294.2N)、100Kgf(980.7N) |
| Rockwell Hardness Indication | Analogue Display |
| Rockwell Resolution | 0.5HR |
| Loading Control | Motorized |
| Magnification of Microscope | Brinell:50x; Vickers:100x |
| Dwell Time | Adjustable 2~60s |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | ISO 6508，ASTM E18，GB/T230 |
