    Product Characteristic

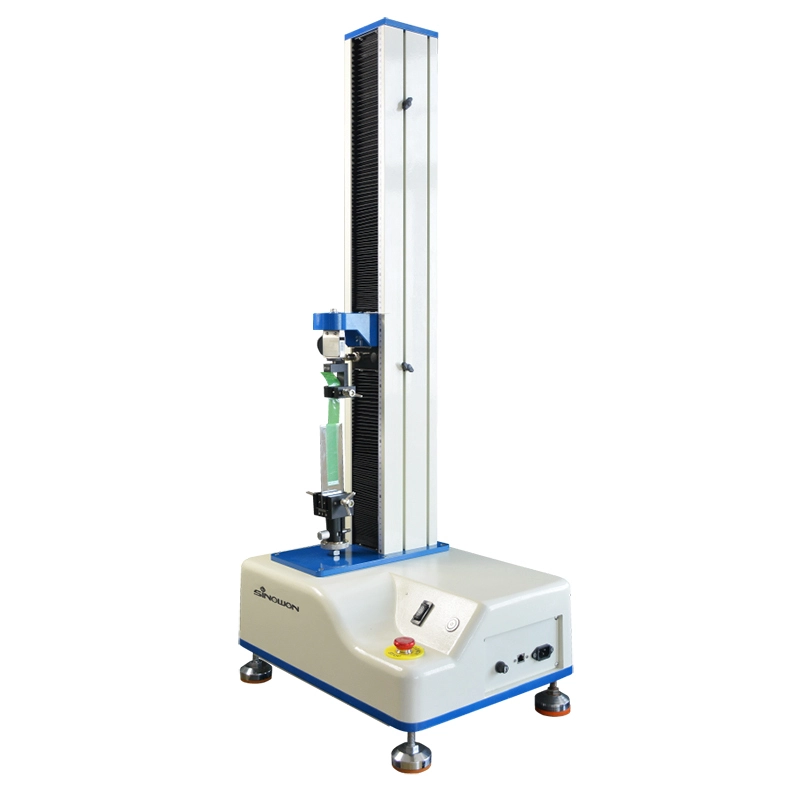

    The SL-8088 computerized peel strength testing machine is a testing instrument designed and developed by our company specifically for the adhesive tape and adhesive industry, used for testing the peel strength of various adhesive products in different ways. Choose different fixtures to make 180 ˚ninety ˚Peel tests using T-shaped and floating roller methods (suitable for high-strength adhesives), as well as adhesive tensile shear strength and splitting strength tests.


    Specification


    Model

    SL-8088

    Capacity

    2,5,10,20,50,100kg,  optional

    Accuracy

    Better than ±0.5%

    Force measurement resolution

    1/500, 000

    Force Resolution

    1/10,000

    Effective force measurement range

    0.5~100%F.S

    Accuracy of deformation indication

    ±0.5%

    Test speed range

    0.1500mm/min, optional

    Test maximum stroke

    Max.650mm, grip excluded

    Effective test space

    120mm diameter range

    Unit switching

    Multiple measurement units including international units, and users can also customize the required units

    Stop method

    Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection

    Standard items

    One 180 ° peeling fixture, three peeling steel plates 50 * 150mm, one PT-6020 manual roller, cable 1pics, user manual 1 set, quality pass 1 pics, warranty card 1 pics

    Optional

    1 90 ° stripping fixture, 1 Loop stack fixture, and computer

    Dimension

    Around 52×38×120cm(W×D×H)

    Weight

    Around 25kg

    Motor

    Servo motor

    Power

    1PHAC220V50Hz10A or customized

    Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
