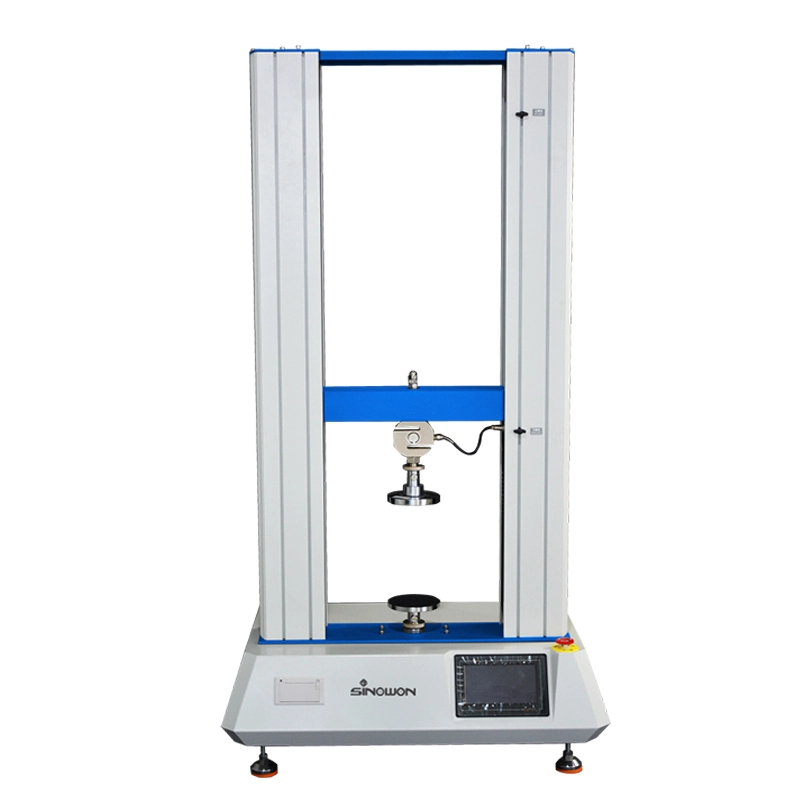

SL-8160 Tensile Compression Testing Machine 1

SL-8160 Tensile Compression Testing Machine 2

SL-8160 Tensile Compression Testing Machine

Model:

SL-8160

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

SL-8160 Tensile Compression Testing Machine 3

Product Characteristic

The SL-8160 tensile pressure testing machine is suitable for industries such as rubber and plastic, paper products, color printing packaging, adhesive tapes, bags and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. It can test the physical properties of various materials, finished products, and semi-finished products. Various fixtures can be selected for tensile, compressive, tensile, compressive, bending, tearing, peeling, adhesion, shear, and other tests.

Our company has completely changed the shortcomings of traditional material testing machines, such as bulky machines, complex operations, and single performance. The structure adopts aluminum extruded sealing plates treated with advanced baking paint, with built-in high-precision, low resistance, gapless rolling screw and guide column; The measurement and control system has high data acquisition and calculation speed, and the test results and curves can be displayed on a color LCD or printed out by a printer. The product has stable and reliable performance, high measurement accuracy, and easy to understand operation.

Specification

Model	SL-8160	SL-8160B
Capacity	500,1000,2000kg, optional
Display	Power and Extension Display
Accuracy	Better than ±1.0%
Force resolution	1/10，000
Effective force measurement range	1~100%F.S
Accuracy of deformation indication	Better than±1.0%
Test speed range	1～500mm/min
Test maximum stroke	Max.1000mm, grip excluded
Effective test space	Left, right 400mm, back and forth
Power unit switching	Kgf, gf, N, kN, Ibf
Stress unit switching	MPa, kPa, kgf/cm2, Ibf/in2
Transformation unit switching	mm，cm，in
Stop method	Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection
Pointing Method	Manual point selection and pre-set point selection (20 points) function during the test process
PC Linked	N/A	Yes
Standard items	1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1qualiy pass, and 1 warranty card	1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1qualiy pass, and 1 warranty card
Optional	PT-211 two-point extension fixture, various testing fixtures
Dimension	Around 78×42×160cm(W×D×H)
Weight	Around 130kg
Motor	AC Servo Motor
Power	1PH，AC220V，50/60Hz，10 or customized
