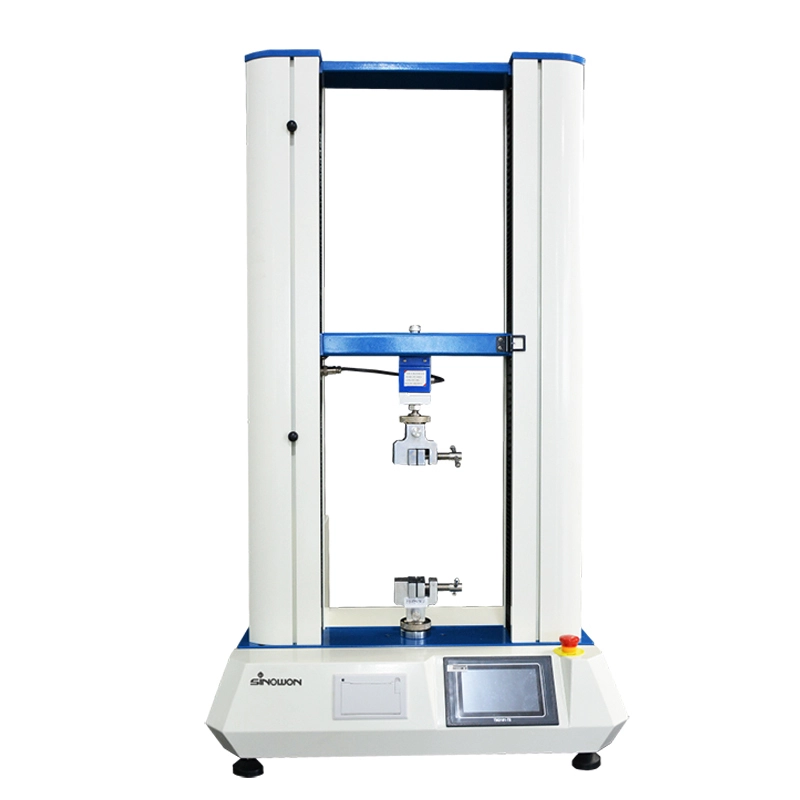

SL-8162 Twin Column Tensile Compression Testing Machine
Product Characteristic
SL-8162 is a small tensile and pressure testing machine developed by our company, mainly suitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire electronics, etc. It can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling, etc.
Specification
Model | SL-8162 | SL-8162B |
Capacity | 2,5,10,20,50,100,200,500kg (optional ) | |
Displays | Power and Extension Display | |
Accuracy | Better than ±1.0% | |
Force resolution | 1/10, 000 | |
Effective force measurement range | 1~100%F.S | |
Accuracy of deformation indication | Better than ±1.0% | |
Speed | 1～500mm/min, optional | |
Max. Stroke | Max.700mm, grips excluded | |
Effective test space | 300mm left and right, front and back | |
Measurement unit switching | Kgf, gf, N, kN, Ibf | |
Stress unit switching | MPa, kPa, kgf/cm2, Ibf/in2 | |
Transformation unit switching | Mm, cm, in | |
Stop method | Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection | |
Spotting method | Manual point selection and pre-set point selection (20 points) function during the test process | |
PC Linked | N/A | Yes |
Accessary | Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics | Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics |
Dimension | Around 63×40×110cm(W×D×H) | |
Weight | Around 55kg | |
Motor | AC servo | |
Power | 1PH, AC220V, 50/60Hz, 10A or customized | |
