    SL-8197 Horizontal Electronic Peel Strength Tester 3

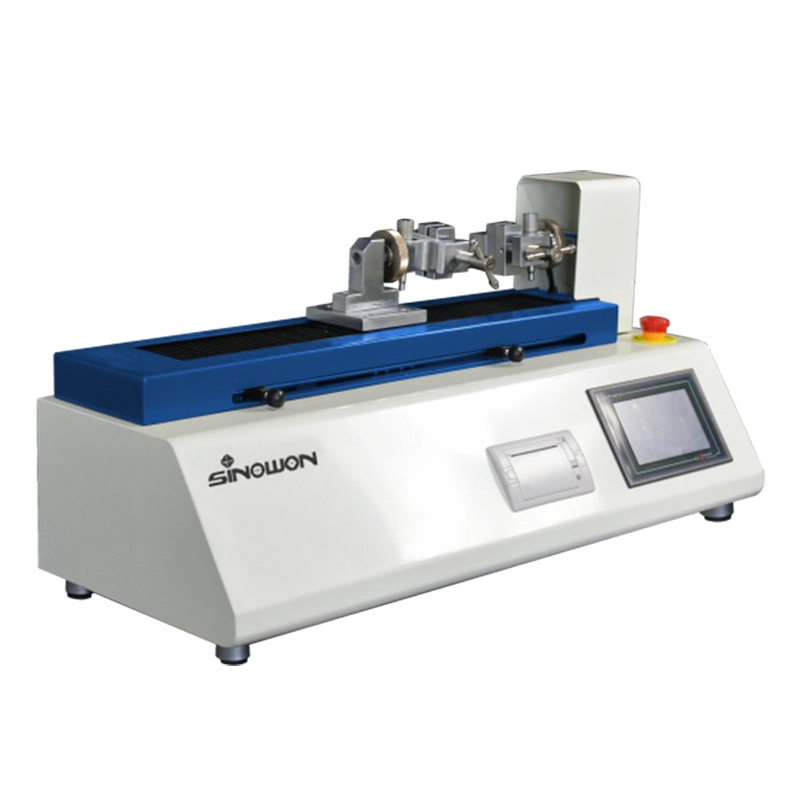

    The SL-8197 horizontal tensile testing machine is the latest economic horizontal testing machine designed and developed by our company. It is suitable for testing tensile, peel, tear, shear, pulling force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, and conveyor belts. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.





    Specification


    Model

    SL-8197

    SL-8197B

    Capacity

    2,5,10,20,50,100,200kg optional

    Display

    5 inch display

    Accuracy

    Better than ±1.0%

    Force resolution

    1/10000

    Effective force measurement range

    1~100%F.S

    Accuracy of deformation indication

    Better than ±1.0%

    Test speed range

    0.5500mm/minoptional

    Test maximum stroke

    Maximum300mm

    Power unit switching

    Kgf, gf, N, kN, Ibf

    Stress unit switching

    MPa, kPa, kgf/cm2, Ibf/in2

    Transformation unit switching

    Mm, cm, in

    Stop Method

    Left and right limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection

    Pointing method

    Manual point selection and pre-set point selection (20 points) function during the test process

    PC Linked

    N/A

    Yes

    Accessary

    Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics

    Standard Grips 1 pair, printer 1 pics, U disk 1 pics, CD operation  manual 1 set, quality pass 1 pics, warranty 1 pics

    Dimension

    Around 70×36×30cm(W×D×H)

    Weight

    Around 30kg

    Motor

    Step motor

    Power

    AC220V, 50/60Hz, 10A or customized

    Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.



    Software

    SL-8197 Horizontal Electronic Peel Strength Tester 4
