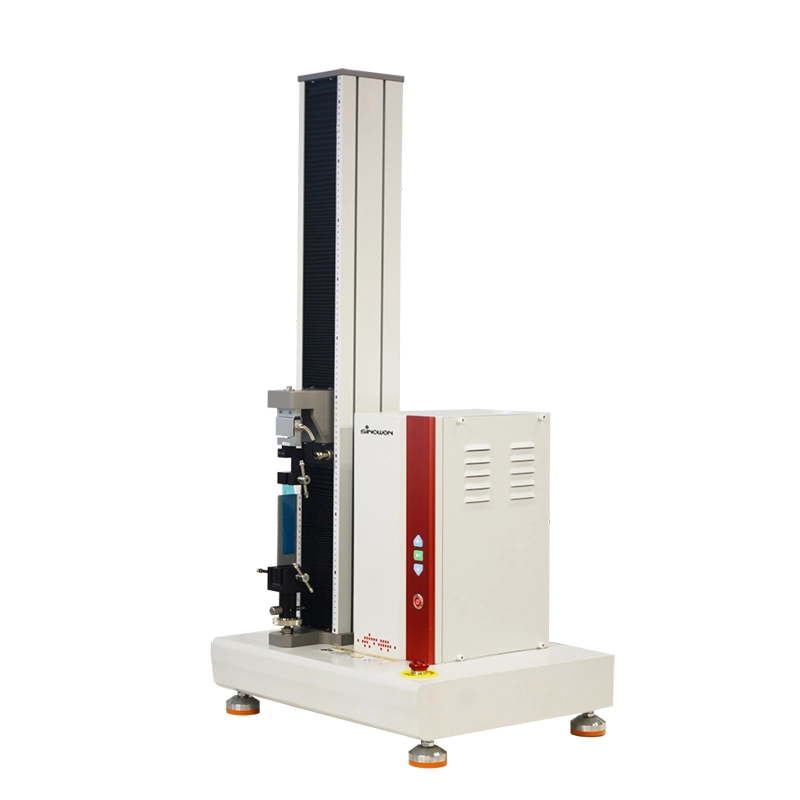

ST-1176 Computer Servo Pull Pressure Test Machine

    oops...!

    no product data.

    Go to homepage

    ST-1176 Computer Servo Pull Pressure Test Machine 2

    ST-1176 computer-type servo pull-pressure testing machine is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper and color printing packaging, adhesive tape, bags and handbags, textile fiber, food, pharmaceutical and other industries. Can test the physical properties of various materials and finished products, semi-finished products, choose a variety of different fixtures can be done tensile, compression, pull, pressure, bending, tearing, stripping, adhesion, shear and other tests. GB, ISO, ASTM, BS, DIN, JIS and other national or international standards can be tested, for the ideal testing and research equipment for various factory enterprises, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.





    Product Characteristic


    uHigh-performance

    The machine structure adopts no pless ball screw and high stiffness guide column, which improves the load efficiency and structural rigidity. Using the full digital AC servo system, to ensure the high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.2%;

    uHigh-accuracy

    Imported high-precision sensor, with an effective measurement range of 0.5%~100%F. S, the combined accuracy was better than 0.085%

    uStandardization

    Grip connection standardization, can quickly replace a variety of test applicable fixtures;

    uHigh wisdom

    Professional software intelligent control interface, automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output; mouse click one-click control, one-click output test report, without tedious education and training;

    uGorgeous

    The aluminum extrusion sealing plate, combined with the elaborate spare parts processing technology, presents the exquisite atmospheric European design style of the whole machine.



    Software Specifications


    uUsing windows working platform, parameter set all point selection, simple operation;

    uSingle screen operation, no need for screen switching

    uThe software interface has simplified Chinese, traditional Chinese and English three languages, easy to switch;

    uThe test form mode can be regulated by itself;

    uTest data can be called directly in the main screen;

    uWith a variety of measurement units, the metric British system can be switched;

    uData comparison of multiple curves can be performed simultaneously;

    uWith the automatic return function;

    uWith the automatic correction function;

    uWith the custom-defined test method function;

    uWith the test data operation and analysis function;

    uWith the function of automatic magnification, in order to achieve the most appropriate size of the figure;

    uCan do tensile, compression, bending, stripping, pull, pressure, fatigue and other tests.



    Specification


    Model

    ST-1176

    Capacity selection

    2,5,10,20,50,100,200,500kg of either option

    TT&C software

    Windows Professional test software under the platform

    Accuracy of measuring force

    Better than ± 0.5%

    Detective resolution

    1/500000

    Effective force measurement range

    0.5~100%F.S

    Deformation value accuracy

    Better than ± 0.5%

    Test speed range

    0.5~500mm / min, can be set

    Test maximum trip

    Maximum 650mm (extended 1000mm, customized), excluding fixture

    Effective test space

    Front and back of 120mm, left and right

    Unit switch

    Multiple units of measurement, including international units

    Shutdown method

    Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing

    Specific function

    Pull, pressure and fatigue test can be done

    Standard Item List

    1 payment of standard fixture, 1 set of software and data cable, 1 equipment power cable, 1 copy of operation manual, 1 product certificate, 1 product warranty card

    Optional Item list

    1 business computer, 1 printer, and various test fixtures

    Dimension

    About 5747120cm (WDH)

    Weight

    About 55kg

    Motor power

    AC servo motor

    Power Supply

    AC220V, 50 / 60Hz, 10A, or specified

    Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.




    Software

    ST-1176 Computer Servo Pull Pressure Test Machine 3
