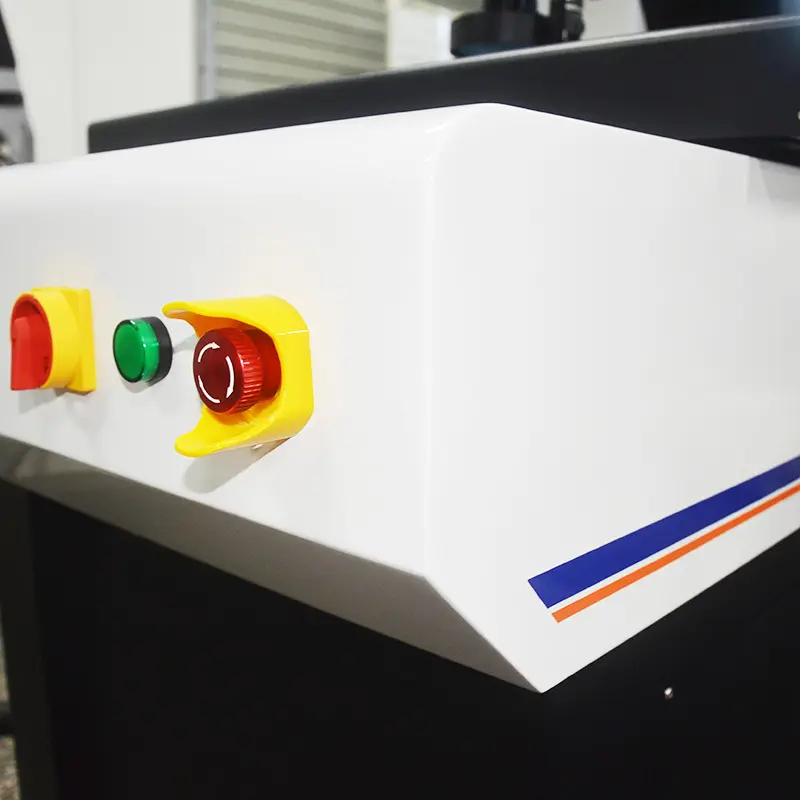

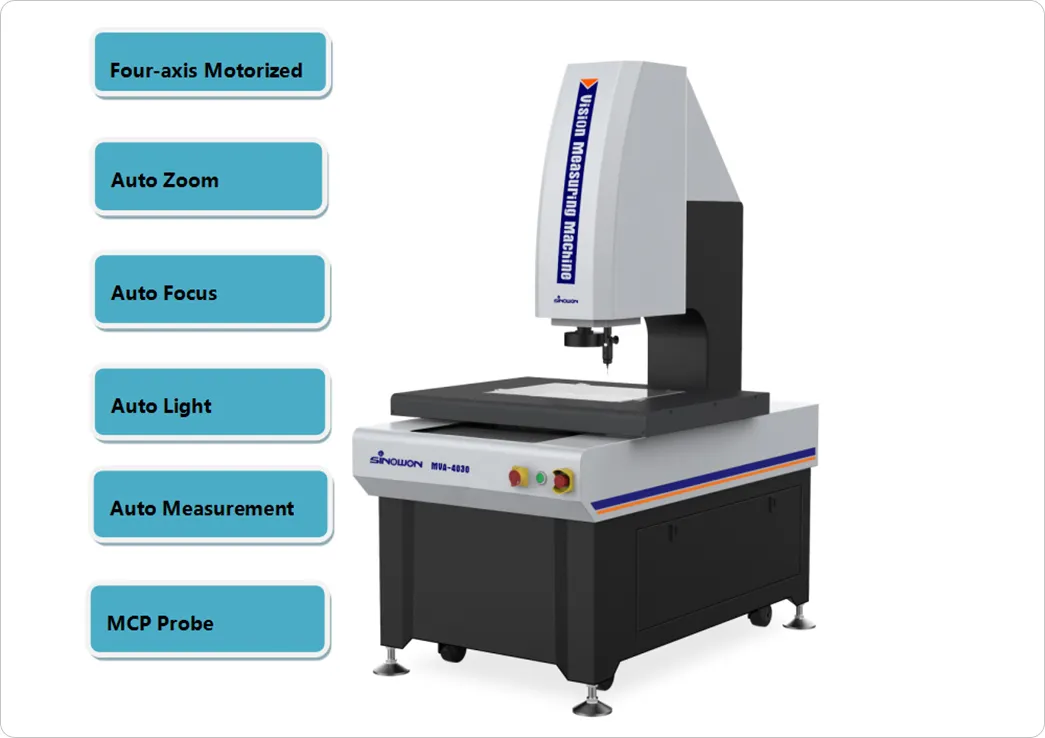

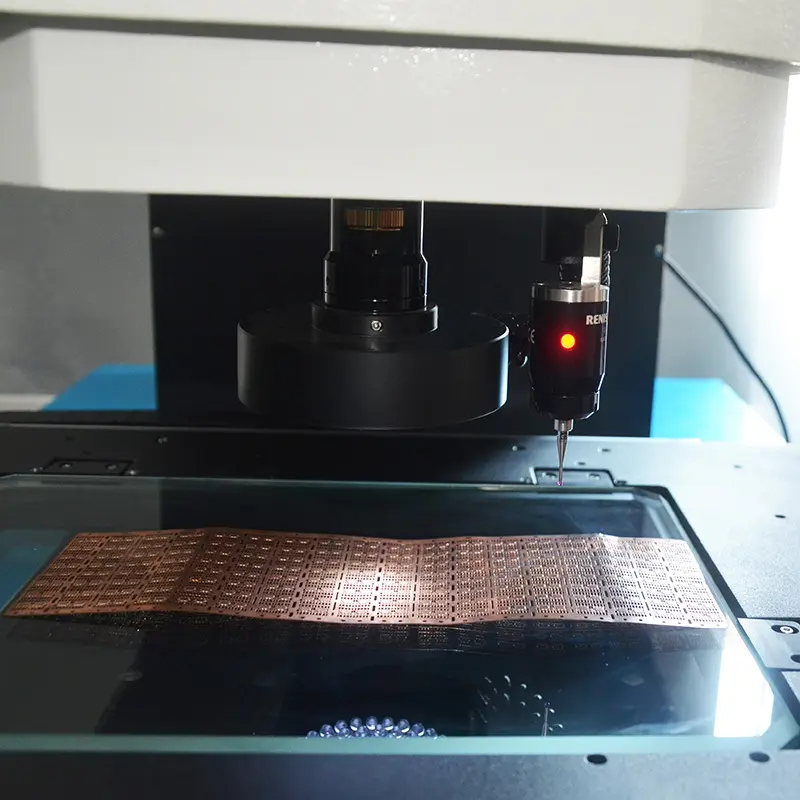

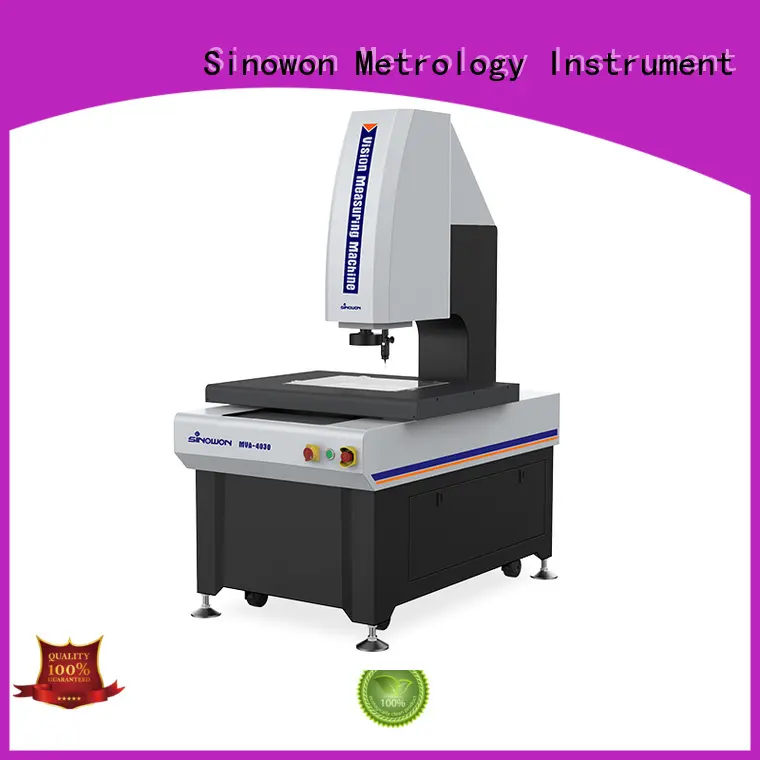

3D MVA is a classical Fully Automatic Vision Measuring Machine, it is equipped with four-axis motorized control and auto zoom lens and probe, powerful function, simple operation, widely application.
Product Characteristics
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ Marble base and pillar, stable and reliable;
◆ Precision linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ High precision linear scale, resolution is 0.5um, high accuracy, great stability;
◆ Imported high definition color industry digital camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary powerful function fully auto measuring software iMeasuring 4.2;

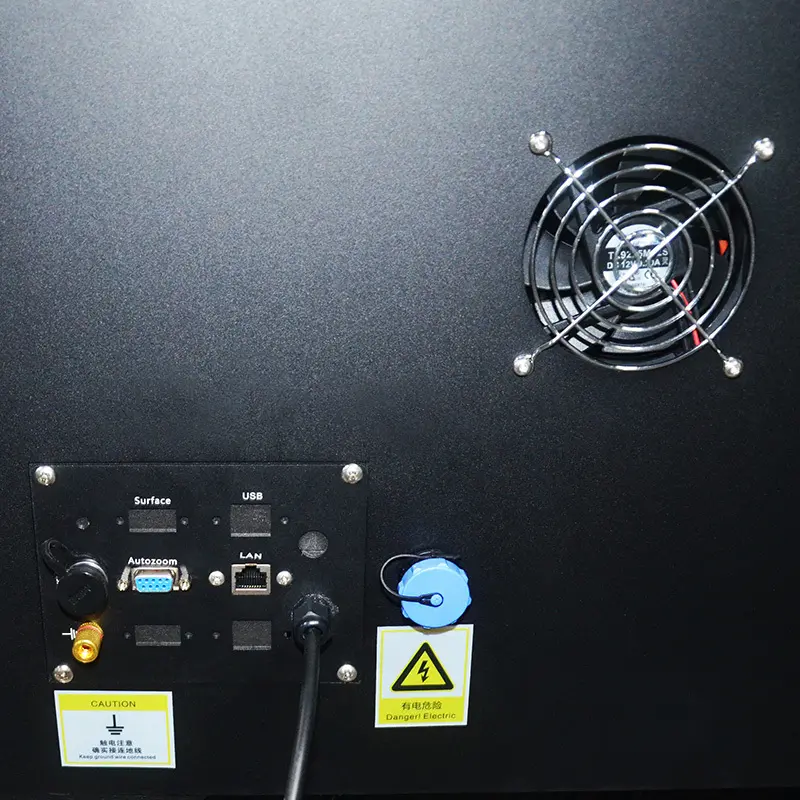

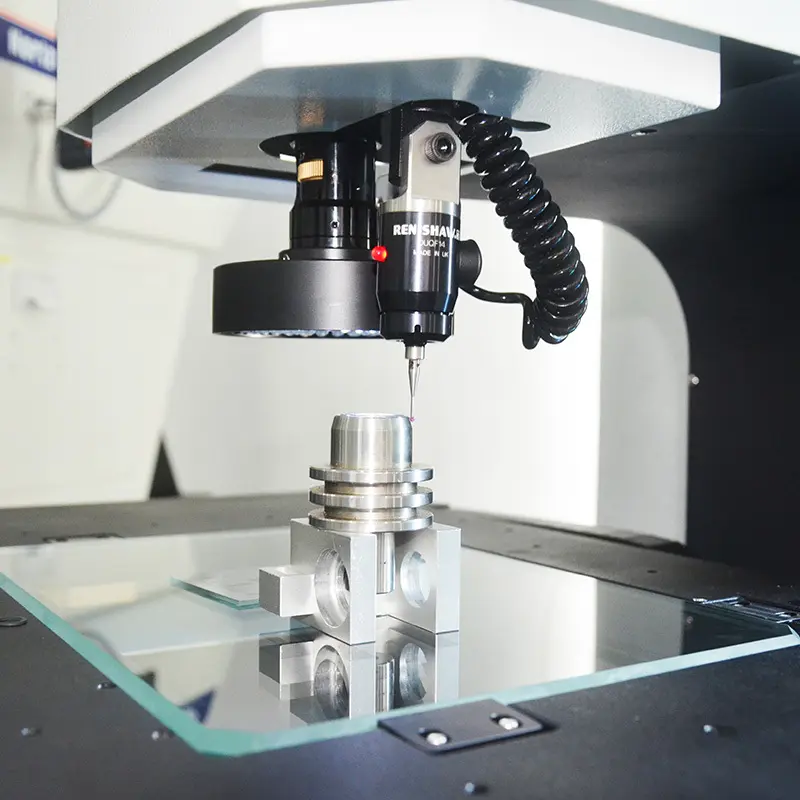

◆ With imported touch probe, realize 3D measurement;
◆ Can set auto measurement, and finish batch measurement with high efficient;
◆ Laser, coaxial illumination and other parts are optional;
◆ Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
Technical Specification
| Product Name | 3D MAV Automatic Vision & Touch-probe Vision Measuring Machine | |||||||
| Model | MVA-3020P | MVA-4030P | ||||||
| Code# | 524-360 | 524-370 | ||||||
| X/Y-axis Travel（mm） | 300x200 | 400x300 | ||||||
| Z-axis Travel（mm） | 200 | |||||||
| X/Y/Z 3-axis Linear Scale（mm） | High precision linear scale，resolution：0.0005mm | |||||||
| Guidance Mode | Precision linear guide，double-track double slider guide | |||||||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | |||||||
| Measurement Accuracy | XY-axis：≤2.2+L/200 | |||||||
| Z-axis：≤5+L/200 | ||||||||
| Repeatability | ±2um | |||||||
| Video System | High definition 1/3" Color CCD Camera, | |||||||
| 6.5X continue click zoom lens; optical magnification: 0.7X-4.5X; video magnification:126X~172X(21.5”monitor) | ||||||||
Field of View(mm) (Diagonal * Horizontal*Vertical) | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | |
| 1/3"CCD | 8.57x6.86x5.14 | 6.00x4.80x3.60 | 3.00x2.40x1.80 | 2.00x1.60x1.20 | 1.50x1.20x0.90 | 1.33x1.07x0.80 | ||
| Illumination | Contour | LED Parallel Contour Illumination | ||||||
| Surface | 5-ring 8-division 0~255 grade continue adjustable | |||||||
| Software System | iMeasuring 4.2 Fully Auto Measuring Software | |||||||
| Load Capacity (Kg) | 25 | 25 | ||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | |||||||
| Power | 220V/50Hz/10A | |||||||
| Dimension(mm) | 1132x720x1665 | 1280x840x1688 | ||||||
| Weight(Kg) | 380 | 450 | ||||||
