high quality coordinate measuring manufacturer for test

Company Advantages
1. Sinowon coordinate measuring combines different bedding design principles. Because only by sticking to all the principles can we create a successful and compelling design. The product is well used in many large engineering projects
2. The product helps improve the flexibility of working and production. It allows operators to change the operation tasks while it is in motion. The product is analyzed and tested cautiously before packing
3. The product is not prone to fracturing caused by expansion. The materials used in it feature low water absorption, which prevents water or moisture from entering into the materials. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
4. The product has the advantage of overload protection. It has reliable cables that can carry momentary overloads for a very short time period. A team of experienced talents is gathered to support the product sales

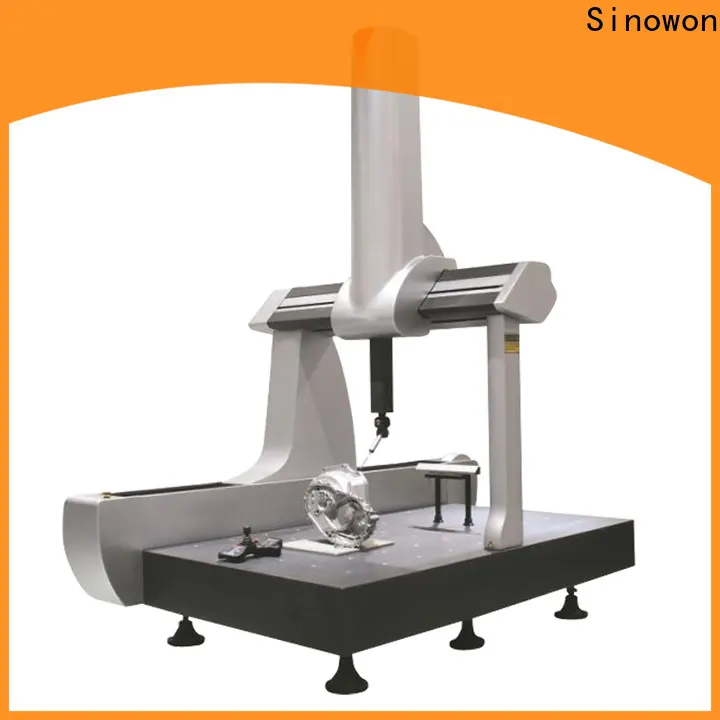

◆ Granite fixed worktable, XZ axes are made of high performance aluminium alloy, Good temperature adaptability and faster movement speed.

◆ Granite worktable with integral “dovetail” guide in Y axis, eliminate the pitch and yaw ,also provides superior motion stability.

◆ Z axis air-balance with self-protection ,improve motion capability.

◆ Advanced synchronous belt drive system with non-slip and high stiffness, ensures high stability, lower noise.

◆ High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped.

◆ Transmission system uses high-power  DC servo motor and new double level tape reducer to ensure rapid and accurate axes.

◆ RENISHAW tonic steel scale，Free expansion with the temperature change.

◆ Famous parts from all over the world are used in every important sub systems.

Measuring Strokes(mm)			Overall Dimension(mm)				Machine   Weight(Kg)	Max. Part Weight (Kg)
X	Y	Z	Lx	Ly	Lz
1000	1200	800	1690	2370	3150		2490	1800
Accuracy is according to ISO 10360 – 2
Maximum permissible error of indication of a CMM for size   measurement (μm)						Maximum permissible Probing Error (mm)
1.5 + 3L/1000						1.9
Scale   Resolution(μm): 0.1
Dynamic Performance
3D   positioning speed(mm/s)						3D acceleration(mm/s2)
530						1200

Room Required Specifications
Room Temperature	18～22°C
Temperature Gradient (in time)	1°C /h
Temperature Gradient (in time)	2°C /24h
Temperature Gradient (in the volume)	1°C /m
Humidity   Required Specifications
Relative   humidity	45-75％
Air   Supply System Required Specifications
Min.   air pressure	5bar [0.5 MPa]
Air   consumption	0.12-0.45m3/min
Electrical   requirements
Voltage	220 V ± 10%
Frequency	50/60 Hz
Max Power consumption	1500VA
Current	15 A
Allowed Maximum   Floor Vibration
Frequency Range	0 ~ 19 Hz      19~75 Hz > 75 Hz
Maximum Amplitude	0.0011 mm     0.0011~0.002 mm   0.002   mm
A good   earth ground (less than 4 W)   is required for reliable operation of the electrical controls.

Company Features
1. Sinowon Innovation Metrology Manufacture Limited., based in China, is an outstanding enterprise that is good at R&D, manufacturing, and supplying of portable cmm machine . Sinowon Innovation Metrology Manufacture Limited. has numbers of excellent engineers and mould-making technicians, which make a strong research and development ability.
2. Manufactured by the most advanced technology, coordinate measuring
3. Sinowon Innovation Metrology Manufacture Limited. has a strong R&D team with more than decades years of experience in accurate cmm machine field. We strive for energy-efficient production. Energy consumption now plays a significant role when acquiring new equipment and optimizing older equipment. This leads to large energy savings.
