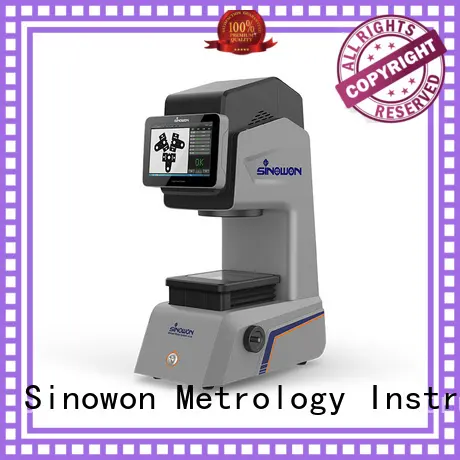

Sinowon approved coordinate measuring machine with good price for cell phone case

Model:
iVS-30
Code#:
500-030
Accuracy:
±2um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
Gost CE
Inquiry
Product Details
With a focus on quality, Sinowon pays great attention to the details of hardness testing machines.Sinowon has the ability to meet different needs. hardness testing machines is available in multiple types and specifications. The quality is reliable and the price is reasonable.
  • Sinowon approved coordinate measuring machine with good price for cell phone case 7
Company Advantages
1. This kind of coordinate measuring machine is produced with the latest technology.
2. This product features good moisture management. Its fabrics allow the transfer of perspiration from the skin to the atmosphere, which regulates the body temperature and maintains heat balance.
3. This product features excellent breathability. It has passed anti-bacterial treatment that can wick away perspiration and fight foot odor.
4. Sinowon Innovation Metrology Manufacture Limited. has formed a unique customer groups and market brand reputation.


Sinowon approved coordinate measuring machine with good price for cell phone case 8



Product Feature


High accuracy and excellent repeatability

High depth of field, low distortion double telecentric lens, no need to repeat focus.

Software processes the image by the way of Sub-pixel edge detection and automatic removal of burrs and outliers and the least-square method to ensure accuracy.

Friendly operation

Automatic location and orientation correction, automatically detect and measure based on the recorded shape of the sample, measure with a click of button.

Efficient batch measurement

Automatically identify multiple parts, test elements, then conduct automatic measurement, satisfied with batch measurement requirements.

Entire image, no need to move the working stage, both high efficiency and high accuracy.

Improve efficiency, save labor cost, eliminate operator error.

Quality Control and Statistical Process Control (SPC)

Automatic memory and output measuring values, and make test data simple applied.


Technical Specification



ModeliVS-30iVS-60iVS-80iVS-160
Code#500-030500-060500-080500-160
Lens0.3X Double Telecentric Lens0.17X Double Telecentric Lens0.088X Double Telecentric Lens0.088X Double Telecentric Lens
Working Distance110 mm110 mm120 mm390mm
Wide FieldØ 30mm(28x24)Ø 60mm(56x50)Ø116mm(94x76)Ø229.6mm(146.7x110)
Measurement Accuracy±2um±3um±4um±7um
Repeatability Accuracy±1um±2um±2um±5um
Camera2/3’’ 5 million pixel B/W camera (Ethernet)
IlluminationDigital controls, automatic memory
Telecentric Green LED Contour illumination
Ring White LED illumination
PC SystemDELL (I5 Intel processors)
MonitorsBuilt-in 10.4 inch LCD Monitor(1920*1080)
External 21.5 inch LCD Monitor(1920*1080)
Measuring SoftwareiMeasuring 2.0
Measuring AmountMax.99
Test Time<5S (Less than 100 tests)
Output dataTest data, reports, determine the results (OK, NG, WAIT), etc
Function2D measurements: points, lines, circles, arcs, angles, distance, oval, O-rings, Groove, rectangle, parallelism
Auxiliary FunctionIntersection, parallel, perpendicular, tangent, bisection.
Geometric TolerancesDimension tolerances and position tolerances, tolerances of form and position (Point position concentricity, straightness, parallelism, roundness, straightness, profile, etc)
Measurement ModeManual / Automation
SPC Data Management and Control
CAD Data Input / Output
Power SupplyAC100~240V,50~60Hz


Application



Sinowon approved coordinate measuring machine with good price for cell phone case 9

It is widely used in quick batch measurement of precision screws, precision springs, gears, cell phone case, cell phone glass, precision metal parts and other parts in small size.


Product Details



Sinowon approved coordinate measuring machine with good price for cell phone case 10
Sinowon approved coordinate measuring machine with good price for cell phone case 11
Sinowon approved coordinate measuring machine with good price for cell phone case 12




Company Features
1. After years of involvement, Sinowon Innovation Metrology Manufacture Limited. has become a highly-qualified manufacturer of rapid i vision measuring system . We have strong capacities in designing and manufacturing innovative products.
2. At present, most of the coordinate measuring machine series produced by us are original products in China.
3. We believe that clear communication and a can-do attitude are the cornerstones of a good supplier-client relationship. And we keep well in our daily business. We will continue to serve our customers with a high degree of professionalism, maintaining and controlling all stages of the manufacturing process in accordance with China's cost and capability advantages while maintaining high-quality standards. Check it! Our firm bears societal responsibilities. The growth of new, more renewable substances combined with more effective resource usage has decreased the environmental impact appreciably.
