Sinowon Coordinate Measuring Machine wholesale for nonferrous metals

Company Advantages
1. Measuring Machine design has evidently improved the performance of Coordinate Measuring Machine, bringing good economic benefit. Its quality and accuracy are improved every year
2. With time going on, our advantage for large capacity can be fully showed in on-time delivery for Sinowon Innovation Metrology Manufacture Limited.. A team of experienced talents is gathered to support the product sales
3. The product is not prone to deformation caused by large temperature difference. Its heavy-duty components and parts are designed to withstand great abuse in changing environments. A quality control system is implemented for the product
4. There is no possibility of crosstalk in this product. The signal lines, power lines, and grounding lines are arranged scientifically and reasonably. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
5. This product is unlikely to pilling. The singeing process removes and burns off any surface hair or surface fibers. Imported materials and accessories are used in product manufacturing

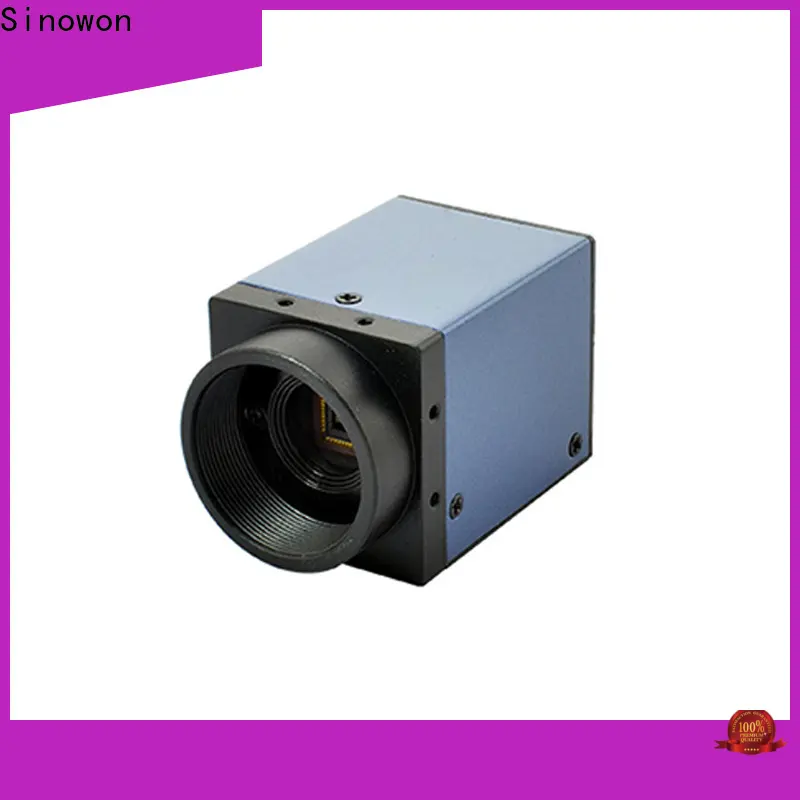

1/3” Analog Color Video Camera

                                                                                       Vicam6.0



Vicam6.0  is the 1/3" analog color CCD camera for Sinowon manual/semi-auto vision measuring system, it has been applied on the series of iMove, iVision, iFocus, iTouch, and iSemi.



Technical Specifications：

Commodity	1/3” Analog Camera of Vision Measuring Machine
Model	ViCam6.0
Video Signal   System	Type E: PAL
Sensor	Diagonal 6.0mm   1/3”  Exview  CCD
Unit cell size	6.5um(H)X6.25um(V)
Number of  pixels	approx. 470K   pixels
Scanning   system	2:1 interlaced
Resolution	650TVL
Video output	composite   video signal: 1.0Vp-p, 75 ohms
Video process	Bio-ele image   processing ele ext-Fx TM
Sensitivity	0.1Lux
S/N ratio	54dB (AGC:   OFF)
ATW	OSD set: Push lock/   manual/auto(1800 °K~10500 °K)
AES	OSD set:   8-level manual/auto: 1/50s~1/10,0000s
OSD	available
Sync mode	internal lock
Lens drive	DC
Lens mount	C/CS mount
Power   consumption	Approx.   1.5W; recommended: +12VDC
Operating   temperature	0℃ to +40℃ (recommended)
Dimension	60.0 (L)×48.5   (W)×58.0 (H) mm
Weight	approx. 155g



1/2” Analog Color Video Camera

Vicam8.0

Vicam8.0 is the 1/2” analog color video CCD camera for Sinowon automatic vision measuring system, it has been applied on the series of AutoVision, AutoTouch, AutoScan as the standard camera.

Technical Specification:

Commodity	1/2” Analogue Color   Video Camera
Model	Vicam8.0
Signal system	Type E: PAL   standard
Sensor	1/2”   8.6um(H)X8.3um(V)
Number of   pixels	Approx.470K pixels
Scanning   system	2:1 interlaced
Resolution	700TVL
Video output	composite   video signal: 1.0Vp-p, 75 ohms Y:0.7Vp-p, 75   ohms: C:0.3Vp-p 75 ohms
Video process	ele ext-Fx
Sensitivity	0.001Lux
S/N ratio	63dB (AGC: OFF)
ATW	OSD set: Push lock/   manual/auto(2300° K~11000° K)
Image adjustment	OSD set, Brightness,   contrast ratio, and sharpness, Chroma, gain
Language	OSD   set,8  English/Chinese/France/German/Portuguese/Spanish
OSD	Available
Sync mode	internal lock
Lens drive	DC
Lens mount	C/CS mount
Lightening   proof	isolated   10/700us 4000V;  follow IEC61000-4.5, ITU-T K20/21
Power   consumption	approx.  2.4W +12V DC
Operating   temperature	0℃ to ~40℃
Dimension	127.1 (L)×68.8   (W)×48.7 (H) mm
Weight	approx. 400g



Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has made an extraordinary achievement in designing, and manufacturing Measuring Machine. We become more popular in the industry. By using advanced technology, Sinowon Innovation Metrology Manufacture Limited. not only improves the quality of Coordinate Measuring Machine but also increases its output.
2. Superior equipment ensures precise process and high efficiency in the production process of hardness tester .
3. Professional excellent review strictly controls all facets of rockwell hardness tester production. Sinowon Innovation Metrology Manufacture Limited. is committed to bringing the best Vision Measuring Machine among other producers. Get quote!
